Objet30 Dental Prime

Digital Dentistry Precision
At An Affordable Price

Offering digital dentistry benefits in a compact desktop size to fit your lab’s needs – Objet30 Dental Prime brings model production in-house without the need to outsource it.

The tray size (300 x 200 x 100mm) and three print modes gives you the ability to print crown and bridge models, RPD patterns, diagnostic wax-ups and surgical guides from 16 to 28 microns.

The Draft mode also means you can print orthodontics arches faster than ever at 36-micron resolution.

Streamlining your lab’s workflow is no longer a dream.

Categories: , Tags: , , , ,
Download Spec Sheet Request a Quote Now

Description

Streamline your workflow with
Objet30 Dental Prime

Backed by Stratasys, the world’s 3D printing solutions provider, Objet30 Dental Prime offers high versatility in addressing a wide variety of dental applications in one affordable, user-friendly printer.

3 different print modes lets you maximize speed or optimize quality and costs according to what you need.

Key Features

Increase Productivity and Capacity

Unlike competing printers in the same price range, Objet30 Dental Prime lets you build multiple models on one tray. Production time is also dramatically reduced as opposed to using manual modeling.

Reliably Consistent and Accurate

The CAD/CAM design software lets you create models that come with fine features and smooth surface finishes. No digital, design knowledge is required to operate the printer, and the process is a clean, quiet one.

Ease of Use

Easy-to-handle materials poses no biohazard safety or risk of material contamination. Work with multiple material options from Clear Bio-compatible (MED610), VeroGlaze (MED620), and VeroDentPlus (MED690).

Materials

VeroDent Plus

Create amazingly fine features and finish with this dark beige material.

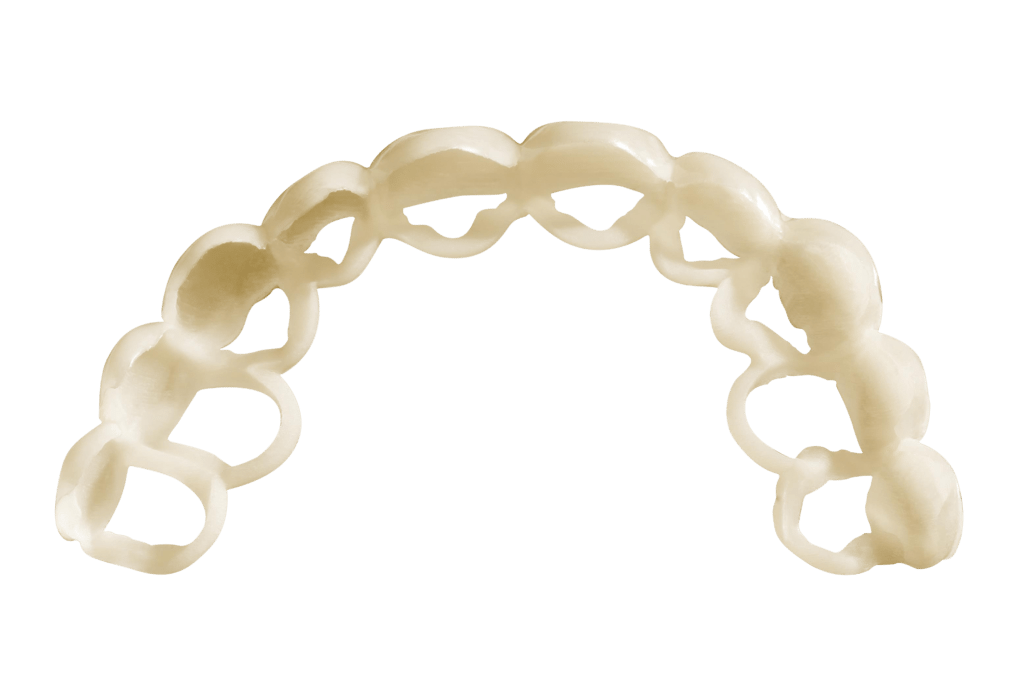

VeroGlaze

Opaque material with A2 shading for the best match in the industry.

Bio-compatible

Rigid material that offers high dimensional stability, accuracy and transparency.

Request A Quote Now

Specifications

Objet30 Dental Prime
MODEL MATERIALS
Clear Bio-compatible (MED610)
VeroDentPlusâ„¢ (MED690)
VeroGlazeâ„¢ (MED620)
SUPPORT MATERIALS
SUP705 (WaterJet removable)
SUP706 (soluble)
BUILD SIZE/
PRINT AREA
300 x 200 x 100 mm
ACCURACY
0.1MM (.0039 in.) varies
depending on part geometry, size, orientation,
material, and post-processing method
MINIMUM LAYER THICKNESS
16 microns (.0006 in.)
BUILD MODES
High Quality: 16 micron (0.0006 in.) resolution
High Speed: 28 micron (.0011 in.) resolution
Draft Mode: 36 micron (.0015 in.) resolution
SOFTWARE
Objet Studioâ„¢ intuitive 3D printing software
WORKSTATION COMPATIBILITY
Windows 7 and Windows 8
NETWORK CONNECTIVITY
Ethernet TCP/IP 10/100 base T
SYSTEM SIZE
82.6 x 62 x 59 cm
SYSTEM WEIGHT
106 kg
OPERATING CONDITIONS
Temperature 18 – 25˚C (64 – 77˚F);
relative humidity 30-70%
POWER REQUIREMENTS
Single phase: 100-120V; 50/60 Hz;
7A or 200-240V; 50/60Hz; 3.5A
REGULATORY COMPLIANCE
CE, FCC/RoHS
