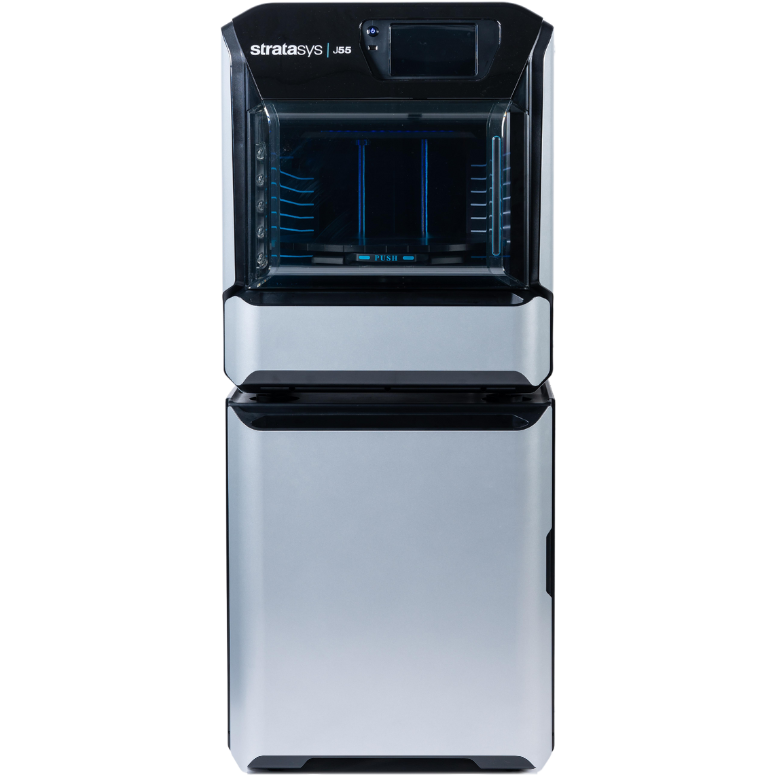

Stratasys J55 Prime

Possibilities at every turn

Stratasys J55 Prime 3D printer introduces full color, high fidelity modeling with tactile, functional, and sensory capabilities – making the efficiency and quality of PolyJet technology more affordable and office-friendly than ever.

From visual full-color to tactile, textual, and feeling sense, designers and engineers can have multiple iterations of a prototype ready and available in hours – all in a compact, quiet, and odorless process.

The printer supports new material combinations of Rubber-like shore (Elastico), High Impact (D-ABS), VeroContact (Biocompatibility) materials together with full-color Pantone validation.

Description

Why Choose J55 Prime

Quality

Upgrade your design process with high resolution, fast prints, and multi-material capabilities.

Capacity

Offers the best footprint-to-tray ratio on the market, allowing you to create the maximum number of models in one print.

Choices

Choose from full color, rigid or transparent materials, elastic flexible surfaces, or Digital ABS for functional prototyping

Office-friendly

It’s ultra-quiet, operating under 53 decibels like a household refrigerator. Capture and filter out fumes with PROAERO™ Air Extraction System.

New materials for J55 Prime

From wood to fabric, the J55 Prime offers a texture option to suit every design need. With nearly 640,000 unique combinations, including Pantone Verified colors, save hours of time by replacing hand-painting techniques with vibrant color finishes. Realize your design ideas more fully with transparent materials to simulate glass and plastic in a range of tints for models that look and function like the real thing. View all materials.

VeroUltra

Introduces sharpness in graphics, vibrant and precision colors and better plastic simulation.

Elastico

Create superior part fidelity with tactile and sensory capabilities providing results that look, feel, and function like the real thing.

Digital ABS

Simulate standard ABS plastics functional modeling combining high-temperature resistance and high toughness.

What’s new with J55 Prime

Flexibility with Elastico™

Enjoy the new standard in elastic elongation-to-break, tear-resistance, and dimensional accuracy.

Functional modeling

Simulate standard ABS plastics functional modeling combining high-temperature resistance and high toughness.

Ultra opaque colors

Set a new standard in full-color 3D hyperrealism with sharpness in graphics, vibrant and precise colors for better plastic simulation.

Prolonged skin contact

Vero™ContactClear is a rigid rapid prototyping material with various on-skin and mucosal usage for applications requiring prolonged skin contact.

No Compromises. Make It Real.

Simulate materials like fabric, wood, leather, and much more with surface texture options or print text and graphics that meet 2D standards.

Reduce time spent on post-processing and communicate ideas more effectively.

Test the ergonomics of consumer products, and place them in the hands of stakeholders.

See how products fit into their environment, and change out colors or adjust the design on the same day. No more long waiting times.

Stratasys J55 Prime vs Traditional Design Processes

* Data based on a standard quote for a car key model from a service bureau using a combination of CNC and screen printing.

Specifications

Stratasys J55 Prime
MODEL MATERIALS
VeroCyanV™, VeroMagentaV™, VeroYellowV™,
VeroPureWhite™, VeroBlackPlus™, VeroClear™, VeroUltra™ClearS.

DraftGrey™, VeroUltra™ WhiteS, VeroUltra™ BlackS,
Elastico™ Clear, Elastico™ Black,
Digital ABS Ivory, VeroContact™ Clear.
SUPPORT MATERIALS
SUP710™
BUILD SIZE/MAX
PRINTABLE HEIGHT
140 x 200 x 190 mm; 187 mm
PRINT AREA
Up to 1,174 cm²
LAYER THICKNESS
Horizontal build layers down to 18 microns (0.0007 in.)
NETWORK CONNECTIVITY
LAN - TCP/IP
SYSTEM SIZE
651 x 661 x 1551 mm
SYSTEM WEIGHT
228 kg
MATERIAL PACKAGE
Hot-swap capable, internal material bay
12 1.1 kg cartridges
OPERATING CONDITIONS
Temperature 18 – 25 °C (64 – 77 °F);
relative humidity 30-70% (non-condensing)
POWER REQUIREMENTS
100–120 VAC, 50–60 Hz, 6A, 1 phase
220–240 VAC, 50–60 Hz, 3A, 1 phase
REGULATORY COMPLIANCE
CE, FCC, EAC
SOFTWARE
GrabCAD Print™
BUILD MODES
High Quality Speed (HQS) – 18.75um
ACCURACY
Deviation from STL dimensions, for 1 Sigma (67%) of models printed with rigid materials,
based on size: under 100 mm – ±150μ; above 100 mm – ±0.15% of part length.**

Deviation from STL dimensions, for 2 Sigma (95%) of models printed with rigid materials,
based on size: under 100 mm – ±180μ; above 100 mm – ±0.2% of part length.**
**Measured when the ambient temperature is 23°C and relative humidity is 50%.

ProAero Air Extraction System
An optional component, the PROAERO™ Air Extraction System effectively captures fumes generated during the printing process and returns ultra-clean, filtered air to the operator’s breathing zone.
CAPACITY
75 m³/h (44CFM)
AIRFLOW/PRESSURE
150m3/h (88CFM)
WEIGHT
10.5 KG
MOTOR
Centrifugal
FAN OUTPUT
100 W
ELECTRICAL SUPPLY
115-230 V
FREQUENCY
50/60Hz
FULL LOAD CURRENT
2.0 A
NOISE LEVEL
Below 57 dBA (at typical operating speed)
SIZE
413 x 298 x 283 mm
TEMPERATURE
+5˚C to +40˚C; +41˚F to +104˚F
HUMIDITY
Max 80% relative humidity (RH) up to 31˚C; Max 50% RH at 40˚C
FILTERS
Pre Filter (PAD) - F7 (96% @ 2 microns)
Combined Filter HEPA (Maxipleat Construction with Webbing Spacers - 99.997% @ 0.3 microns
Carbon (Granules) - Activated

Request A Quote Now

Technology

Behind J55 Prime Technologies

How is the J55 Prime different from the rest?

The J55 Prime is the first 3D printer with a rotational printing sequence that is unique and cutting-edge. The very limited head movement and constant speed during printing promote exceptional quality and part realism.

 Transition Zone  – Variable area based on part placement that is reserved to maximize material jetting while maintaining quality.
 Static Print Head  – Taking motion out of the print head allows for consistent material jetting and results in outstanding print quality.
 Rotating Tray  – Allows for shorter, radial 3D printing paths for faster prints and better quality.

Printing Area

The modern rotational printing sequence allows for low head movement and constant speed.

This results in better-quality prints at a faster speed.

Learn More About
Rotating Build Tray

UV LED Illumination Technology

  • Achieve high reliability and low maintainability with the UV LED.
  • Smart UV illumination sequence with zero calibration required.
  • High print head reliability.
  • High energy efficient LED light with expanded lifetime.
  • Optimal print viewing (no window tint necessary).

Request A Quote Now

PANTONE™ Validated

Power Designs with Color.
Communicate with Reality.

Improve the speed, efficiency, and color fidelity of your prototypes by 3D printing with PANTONE® colors.

As a PANTONE Validated™ 3D printer just like the Stratasys J8 Series, the J55 Prime enables you to match Stratasys CMYK colors of more than 1,900 printable PANTONE Colors, Solid Coated and SkinTones™.

Color matching to PANTONE colors is as simple as a single click from the GrabCAD Print software.

By providing a quicker, more realistic expression of color in models and prototypes, organizations or individuals can save hours over traditional paint matching or iterative color-matching processes, and focus on other important things at hand.

PANTONE Validated Approval Certificate


Request A Quote Now

Software

GrabCAD Print Software

GrabCAD Print software makes 3D printing easy, accessible and connected. Read and understand CAD files natively to help you simplify the preparation, scheduling, monitoring, and reporting of all your print jobs. GrabCAD Print offers an efficient workflow that streamlines job management in shared office and model shop environments using Stratasys 3D Printers.


Print directly from CAD
Save time by directly printing CAD files, without converting and fixing STL files. You can also print directly from within Creo 4.0 or the SOLIDWORKS® Add-in.

Get Started Fast
Smart default settings, tooltips, and notification help you to print seamlessly, without the need to fiddle with the settings.

See what you’re doing
Make necessary adjustments when required, with a detailed view of your model, tray, and slice preview. Now supports KeyShot® Render for realistic 3D prints within a matter of hours.

CMF Support
Simplify your 3D print workflow with support for 3MF file format, which contains data on textures, materials, colors, and more.


Request A Quote Now

Design Realism

Smart Speaker Prototype

This prototype produced on the Stratasys J55 Prime demonstrates the color, texture, and details made possible with Vero™ materials – create functional CMF models that look, feel, and function like the real thing.

The surface finish simulates the appearance and feel of fabric, and details like the USB-C port allow for functional testing.

Smart Speaker Prototype Statistics

Material VeroBlackPlus™, VeroCyan-V™, VeroMagenta-V™,
VeroPureWhite™, VeroYellow-V™, SUP706
Build Time 7 hours 46 minutes
Material Amount Used 258 grams
Support Material Amount Used 306 grams

Earbud Packaging Application

This earbud packaging model, complete with earbuds, charging case, and user manual, was 3D printed with PolyJet technology.

The CMF model includes full color and finish accuracy, allowing for user testing and easy decision-making. 3D printed packaging also saves time, replacing several technologies – CNC, laser cutting, and vacuum forming – with one efficient, in-house process.

Earbud Packaging Statistics

Material VeroPureWhite™, VeroCyan-V™, VeroMagenta-V™,
VeroYellow-V™, VeroClear™
Build Time 42 hours 37 minutes
Material Amount Used 860 grams
Support Material Amount Used 657 grams
