Stratasys J700 Dental

High-Throughput Dental Solution
for Clear Aligner Leaders

An accurate, repeatable, and fully-scalable solution, Stratasys J700 Dental is dedicated to the high volume production of clear aligners.

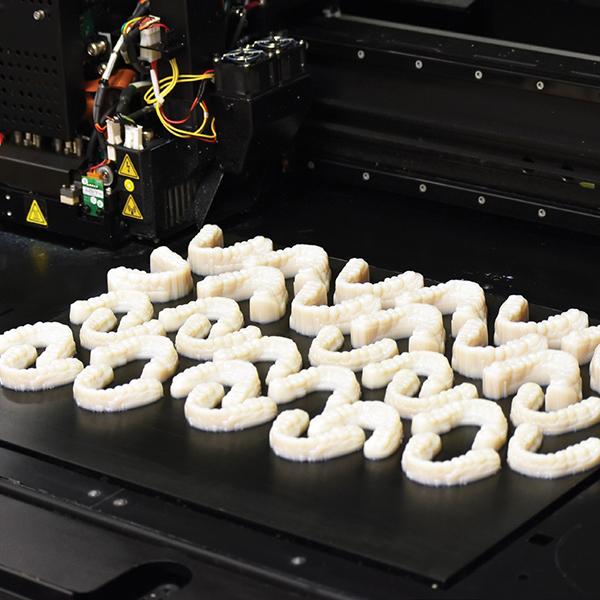

Capable of churning out 50 – 60 arches per tray and up to 400 clear aligners per day, you can now streamline your production in hours instead of weeks.

With the plug-and-play setup and easy calibration process, enjoy clear aligner production right out of the box for truly lights-out manufacturing 24/7.

Description

Designed for
Clear Aligner Production

Whether you are scaling up an existing clear aligner operation or looking to supercharge your lab revenue by turning it into a clear aligner factory, Stratasys J700 Dental lets you align your production to meet the demands of this growing market.

Featuring single material printing with either MED670 or MED690, produce the highest quality arches with the cost savings and ease-of-use of truly hands-off manufacturing.

SUP705 support material means streamlined cleaning so that your arches move quickly from print to thermoforming, and shipment. Faster, lower cost, quality arches mean more satisfied customers.

Key Features

Plug-and-Play

A simple plug-and-play setup with GrabCAD Print integration lets you achieve industry-leading results without the need for special operator training.

Supercharge your Aligner Production

PolyJet technology lets you balance speed, quality, accuracy, and repeatability for a competitive cost-per-arch. Designed for 24/7 use with high reliability and uptime.

Industry-leading Model Quality

Deliver industry-leading model quality with no risk of material distortion through secondary processing steps because of the support material for enhanced efficiency.

Customer Satisfaction

The fully integrated hardware, software, and materials solution to get to full production in just hours means you can focus on delivering the highest patient satisfaction at a lower cost.

Specifications

Stratasys J700 Dental
MATERIAL OPTIONS
VeroDent (MED670), VeroDentPlus(MED690)
APPLICATIONS
Clear aligner arches
BUILD AREA
490 x 390 x 200 mm
LAYER THICKNESS
55 microns (.0021 in.)
WORKSTATION COMPATIBILITY
Windows 7, 8.1, and 10 (64 bit only)
NETWORK CONNECTIVITY
LAN-TCP/IP
SYSTEM SIZE
1400 x 1260 x 1100 mm
SYSTEM WEIGHT
430 kg
MATERIAL CABINET SIZE
670 x 1170 x 640 mm
MATERIAL CABINET WEIGHT
152 kg
OPERATING CONDITIONS
Temperature 18 – 25˚C (64 – 77˚F);
relative humidity 30-70% (non-condensing)
POWER REQUIREMENTS
100 - 120 VAC, 50 - 60Hz, 13.5 A, 1 phase 220- 240 VAC, 50 - 60 Hz, 7A, 1 phase
REGULATORY COMPLIANCE
CE, FCC, EAC
SOFTWARE
GrabCAD Print compatibility
