Stratasys J720 Dental

Speed. Productivity. Realism.

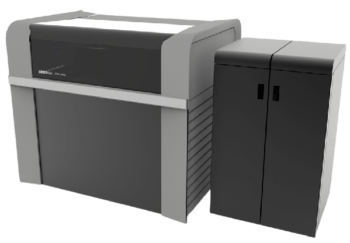

Designed to meet the increased demands that dental labs face today, the Stratasys J720 Dental is a full-color multi-material 3D printer that produces high-resolution models with precise accuracy in a single print on a production scale.

With an unrivaled combination of speed, high throughput, and realism, labs can now handle all dental case needs and with the capacity to outperform DLP and SLA dental printers.

Categories: , Tags: , , , ,
Download Brochure Request a Quote Now

Description

Harness the Power of Color

  • Increase communication and patient acceptance of hyper-realistic case presentations — show your patients how their treatment will look like before starting work.
  • Full-color capability helps you to handle complex cases, differentiate your lab, improve workflow and tracking, and communicate more information.
  • Reduce the remakes of crown and bridge remakes as J720 Dental is the only dental 3D printer that is able to create highly-realistic replicas of the patient’s mouth.

Increase Productivity, Work Faster

  • Reduce material changeovers and eliminate the need for multiple printers by printing with six materials at once.
  • Print all dental parts – implant models, surgical guides, gingiva mask and more – in a single print.
  • Large print capacity accommodates many cases at a time, reducing touch-time to load and process smaller printers with lower capacity

Request A Quote Now

Specifications

Stratasys J720 Dental
MODEL MATERIALS
  • Dental materials - VeroDent (MED670) and VeroDentPlus (MED690)
  • Biocompatible materials: MED610, MED620, MED625FLX
  • Vero family of opaque materials including neutral shades
  • Vibrant colors including VeroCyanV, VeroMagentaV, and VeroYellowV
  • Tango and Agilus30 families of flexible materials
  • Transparent VeroClear
  • VeroUltraClear
    		•
    DIGITAL MODEL MATERIALS
    Unlimited number of composite materials including:
  • Over 500,000 colors
  • Materials to replicate soft tissue in a variety of Shore A values
  • Translucent color tints
  • Separator Digital Materials
    		•
    SUPPORT MATERIALS
    SUP705B (WaterJet removable)
    SUP706B (soluble)
    BUILD AREA
    490 x 390 x 200 mm
    BUILD MODES
    High Speed: up to 3 base resins, 27-micron (0.001 in.) resolution
    High Quality: up to 6 base resins, 14-micron (0.00055 in.) resolution
    High Mix: up to 6 base resins, 27-micron (0.001 in.) resolution
    LAYER THICKNESS
    Horizontal build layers down to 14 microns (.00055 in.)
    WORKSTATION COMPATIBILITY
    Windows 7
    NETWORK CONNECTIVITY
    LAN-TCP/IP
    SYSTEM SIZE
    1400 x 1260 x 1100 mm
    SYSTEM WEIGHT
    430 kg
    MATERIAL CABINET SIZE
    670 x 1170 x 640 mm
    MATERIAL CABINET WEIGHT
    152 kg
    OPERATING CONDITIONS
    Temperature 18 – 25˚C (64 – 77˚F);
    relative humidity 30-70% (non-condensing)
    POWER REQUIREMENTS
    100 - 120 VAC, 50 - 60Hz, 13.5A, 1 phase
    220 - 240 VAC, 50 - 60 Hz, 7A, 1 phase
    REGULATORY COMPLIANCE
    CE, FCC, EAC
    SOFTWARE
    GrabCAD Print
