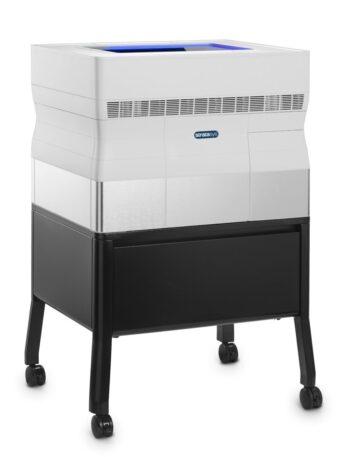

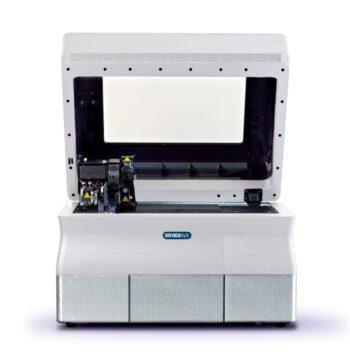

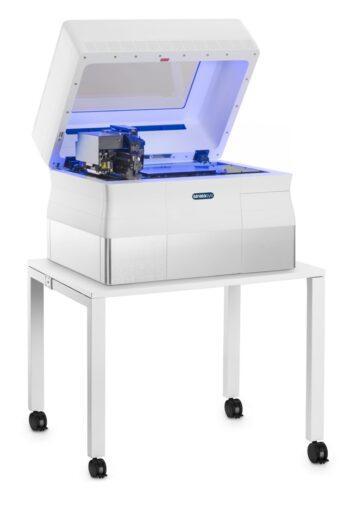

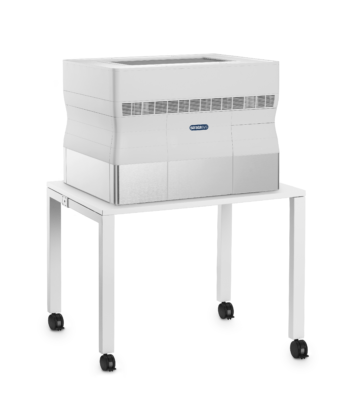

Objet30 V5 Pro and Prime

Precision Prototyping
For the Desktop

Get accurate and versatile 3D printing – all from your desktop with the upgraded Objet30 V5 Pro and Prime.

Create single material parts in excellent print resolution that comes complete with smooth surfaces, small moving parts, and details like thin walls.

The roomy tray size (294 x 192 x 148.6 mm) gives you extreme versatility to print a variety of consumer goods, electronics, medical devices and more.

With GrabCAD Print, Objet30 offers a user-friendly workflow for faster printing and easier print job management.

Categories: , Tags: , , ,
Download Spec Sheet Request a Quote Now

Description

Do more with the new new Objet30 3D printer

The new Objet30 gets a performance upgrade with GrabCAD Print that replaces ObjetStudio for an easier workflow management, and a new material offering – DraftGrey, a low cost modeling material that’s ideal for early stage prototyping. The Objet30 Prime also introduces Fast Draft mode for you to not just save money on concept models but also precious time.

Objet30 Materials

Be it fast prototyping or to do functional testing, a variety of material options available for Objet30 let you speed up product development and focus on other pressing tasks at hand.

Vero – Rigid Opaque

Create stunning detail and stability with Vero materials in opaque white, black, blue, or grey.

VeroClear

Simulate clear materials like glass and plastic with translucent VeroClear.

DraftGrey

Save both time and money on early stage prototypes with this low-cost, fast printing material.

Simulated Polypropylene

For prototypes, snap-fit assemblies and living hinges, these polypropylene-like materials (Rigur and Durus) provide durability, smooth surfaces, and great impact resistance.

Tango

(TangoGray and TangoBlack) Tango rubberlike material is an ideal choice for products that require soft or nonstick properties.

Biocompatible (MED610)

With biocompatible MED610 material, create rigid, translucent parts for medical device prototyping.

FAQs


Is the Objet30 V5 for me?
It is ideal for small to medium product development shops that require RP/form-fit solutions with a small footprint, quick turnaround time and being able to choose from a wide range of materials.

What are the differences between Objet30 Pro and Objet30 Prime?
While similar in appearance, Objet30 Prime differs from Objet30 Pro in:  supports Elastomer and Bio-compatible materials, able to print in 36µm, and supports draft mode printing which is up to 25% faster.

Can I use DraftGrey with my Objet24/Objet30 V3 printer?
Objet24 does not support DraftGrey as there is no GrabCAD Print support for this model.

Objet30 V3 users can use DraftGrey with an update from Objet Studio to GrabCAD Print.


Is there a cost to update my Objet30 V3 printer to benefit from DraftGrey and GrabCAD Print?
GrabCAD Print is a free update. DraftGrey enablement will be free for users under contract.

Will GrabCAD Print support my Objet24 printer?
Objet24 will NOT be supported by GrabCAD Print.

Can I upgrade my Objet24/Objet30 V3 printer to Objet30 V5?
A hardware upgrade is not possible. Do check with us about upgrade promotions however.

White Paper

Upgrade your
Product Development Process

In just a few clicks, you can create multi-material prototypes using a clean, efficient, and office-friendly process.

Combining smooth surface finish, highly accurate geometries and a large selection of materials and material combinations, PolyJet technology enables the best representation of the intended final product.

PolyJet technology is also a clean process suitable for both office and desktop environments.

Whatever the driver, there are myriad benefits to integrating 3D printing into your product development process.

We give you five ways PolyJet can help improve product design, from cost and time savings to ensuring customer satisfaction.

Download White Paper

    Specifications

    Objet30 V5
    MODEL MATERIALS
    Neutral: VeroWhitePlusâ„¢, VeroBlackPlusâ„¢, VeroBlueâ„¢, VeroGreyâ„¢, DraftGreyâ„¢
    Transparent: VeroClearâ„¢, RGD720â„¢*
    Simulated Polypropylene: Rigurâ„¢, Durusâ„¢
    High Temperature
    Rubberlike*: TangoGrayâ„¢, TangoBlackâ„¢
    Biocompatible*
    SUPPORT MATERIALS
    SUP705â„¢ (Water Jet removable)
    SUP706â„¢ (soluble)
    BUILD SIZE/
    PRINT AREA
    294 x 192 x 148.6 mm
    LAYER THICKNESS
    Horizontal build layers range between
    16 microns – 36 microns
    (0.0006 in. – 0.0014 in.)
    depending on the print mode.
    WORKSTATION COMPATIBILITY
    Windows 10
    NETWORK CONNECTIVITY
    Ethernet TCP/IP 10/100 base T
    SYSTEM SIZE
    82.6 x 60 x 62 cm
    SYSTEM WEIGHT
    106 kg
    OPERATING CONDITIONS
    Temperature 18 – 25 ˚C (64 – 77 ˚F); relative humidity 30-70%
    POWER REQUIREMENTS
    Single phase: 100-120V; 50/60 Hz, 7a or 200-240V; 50/60Hz, 3.5a
    REGULATORY COMPLIANCE
    CE, FCC/RoHS
    SOFTWARE
    GrabCAD Printâ„¢
    BUILD MODES
    High Quality: 16 micron (0.0006 in.) resolution
    High Speed: 28 micron (0.001 in.) resolution
    Fast Draft*: 36 micron (0.0014 in.) resolution
    XY RESOLUTION
    600x600 DPI
    *Only available on Objet30 V5 Prime

    Request A Quote Now

    Software

    GrabCAD Print Software

    GrabCAD Print software makes 3D printing easy, accessible and connected. Read and understand CAD files natively to help you simplify the preparation, scheduling, monitoring, and reporting of all your print jobs. GrabCAD Print offers an efficient workflow that streamlines job management in shared office and model shop environments using Stratasys 3D Printers.

    Print directly from CAD
    Save time by directly printing CAD files, without converting and fixing STL files. You can also print directly from within Creo 4.0 or the SOLIDWORKS® Add-in.

    Get Started Fast
    Smart default settings, tooltips, and notification help you to print seamlessly, without the need to fiddle with the settings.

    See what you’re doing
    Make necessary adjustments when required, with a detailed view of your model, tray, and slice preview. Now supports KeyShot® Render for realistic 3D prints within a matter of hours.

    CMF Support
    Simplify your 3D print workflow with support for 3MF file format, which contains data on textures, materials, colors, and more.
