Stratasys J8 Prime

Bring your Boldest Ideas to Life

Give every idea the maximum chance of success by creating realistic prototypes that faithfully reflect your design.

From ideation to creation, the full-color multi-materialĀ J850 PrimeĀ and J826 PrimeĀ under the J8 Series deliver a fully-functioning, PANTONEā„¢ validated prototype 200% faster than traditional methods with unrivaled aesthetics for designers.

With the capability to model multiple prototypes in one print – it has never been easier to get prototypes to all stakeholders and improve overall design communication.

If you require multi-material 3D printing but don’t require any colors, look no further with the J850 Pro.

Description

Designed for Designers

With over 500,000 unique colors, realistic texture simulation, flexible and transparent materials and a click-and-print workflow, the J826 and J850 Prime 3D printers are the most versatile full-color printers on the market.

Create better quality prototypes with higher accuracy, more materials, and superior finishes than traditional methods – with savings of up to 70%.

See yourself in the J8 Series. Designed for –Ā Product Designers, Packaging Designers, Design Engineers, Biomedical Engineers.

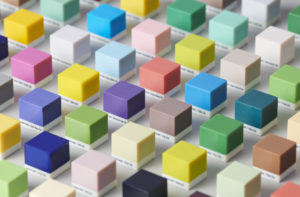

Pantoneā„¢Ā Color Validated

Create realistic prototypes that faithfully replicate your design for maximum success with your design ideas. Exactly as you imagined. All the time.

Besides supporting over 500,000 color options, the J8 Prime Series is also one of the world’s first 3D printing system to come with PANTONEĀ color validation and multi-material capabilities for unrivaled aesthetic results.

By modeling multiple prototypes in one print – it has never been easier to get prototypes to all involved stakeholders and improve design communication.

Stratasys J750 and J735 are the first 3D printing offerings fully endorsed by Pantone.

Prototype With Stratasys J8 Series 3D Printers

Brilliant designs shouldnā€™t have limitations. Realize and elevate your ideas more quickly and precisely with StratasysĀ J850 PrimeĀ andĀ J826 PrimeĀ 3D printers ā€” designed for all who design.

More power to design with more materials

Load up to seven materials at one time with the printerā€™s multi-material capacity. Expansive color and texture combinations help you to create the most realistic models in the shortest time possible.

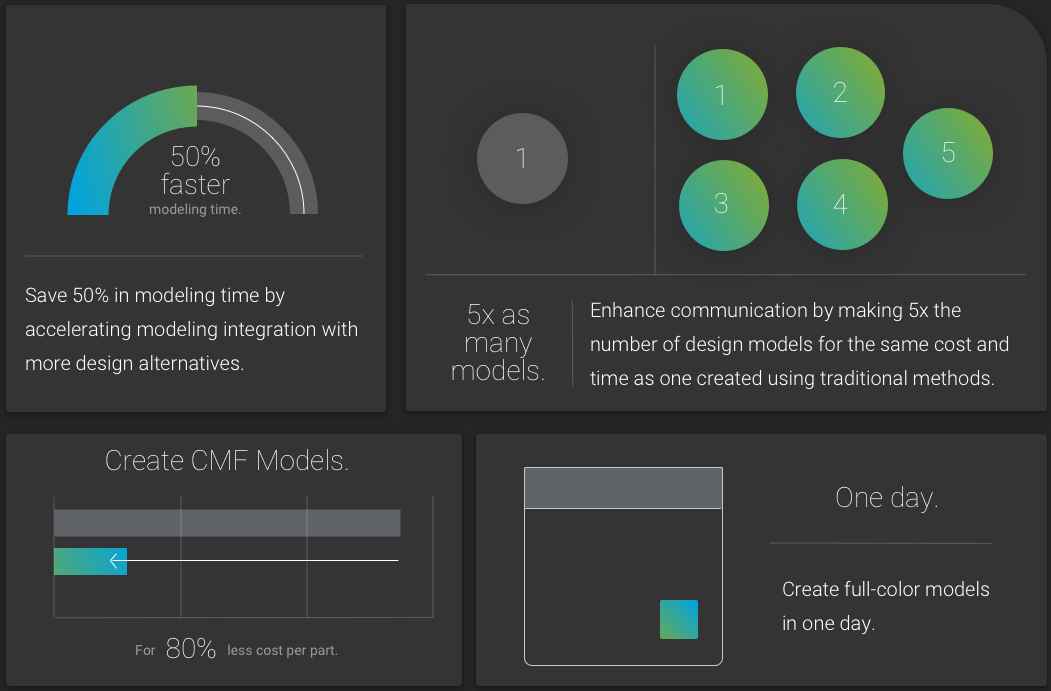

Business Impact in a nutshell

WHITE PAPER

Explore Applications

Brilliant designs should not have limits.

The Stratasys J8 Series helps solve design challenges in a more creative, nimble, and cost-effective way.

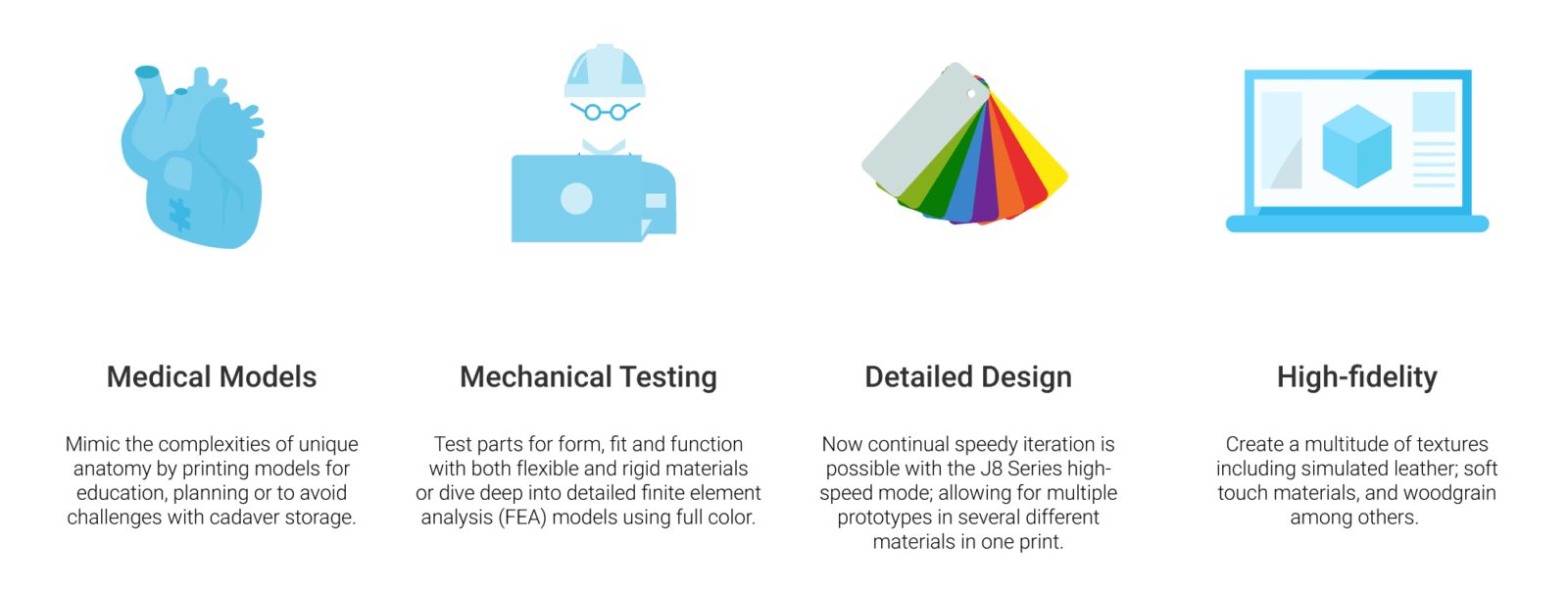

From early-stage prototypes to high fidelity models, the J8 Series is designed for all stages of design and a multitude of applications.

Explore application examples and imagine what the J8 Series could do in your designerā€™s hands.

Download the Ebook to get a closer look at the Stratasys J8 Series of 3D printers and get a better understanding of the impact they have on design realism across all industries and disciplines.

Download White Paper

    Specifications


    Stratasys J8 Prime Series
    MAXIMUM BUILD SIZE
    J850 Prime: 490 x 390 x 200 mm (19.3 x 15.35 x 7.9 in.)
    J826 Prime: 255 x 252 x 200 mm (10 x 9.9 x 7.9 in.)

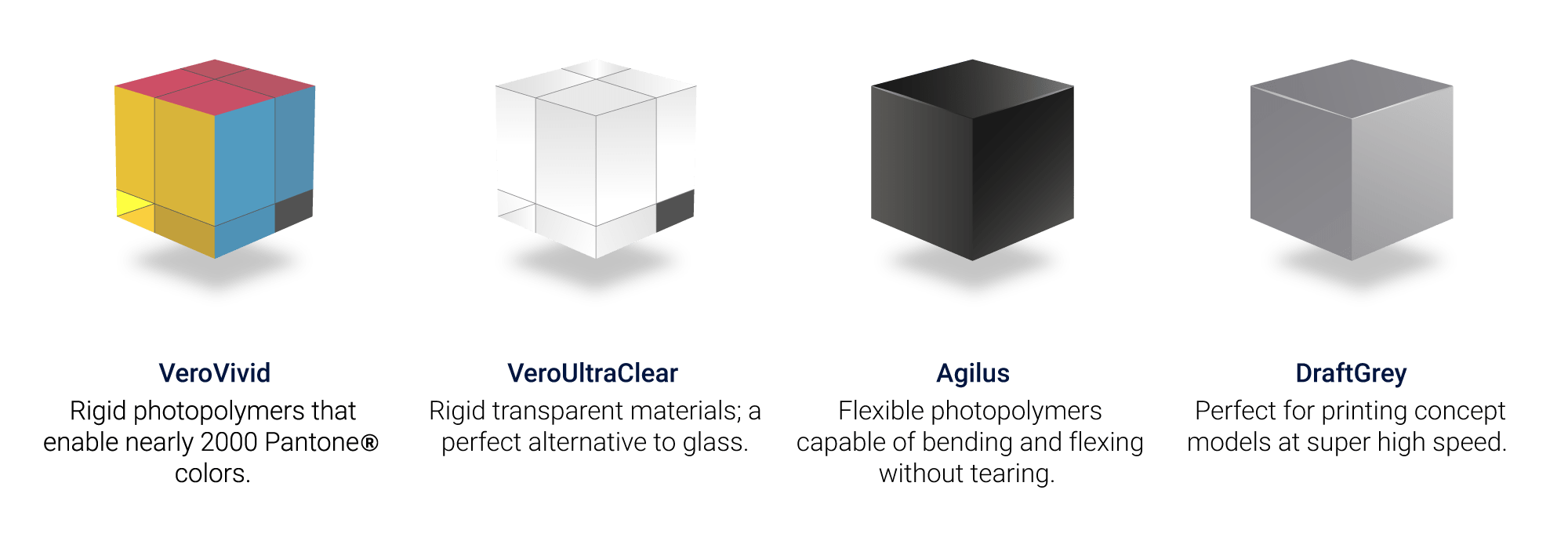

    MODEL MATERIALS
    ā€¢ Veroā„¢ family of opaque materials including neutral shades and vibrant VeroVividā„¢ colors
    ā€¢ Agilus30ā„¢ flexible material
    ā€¢ Transparent VeroClearā„¢ and VeroUltraClear
    DIGITAL MATERIAL OPTIONS
    Unlimited number of composite materials including:
    ā€¢ Over 500,000 colors
    ā€¢ Digital ABS Plus and Digital ABS2 Plus in ivory and green
    ā€¢ Rubber-like materials in a variety of Shore A values
    ā€¢ Translucent color tints
    LAYER THICKNESS
    Horizontal build layers down to 14 microns (0.00055 in.)
    55 microns (0.002 in.) in Super High Speed mode
    MACHINE DIMENSIONS
    J850 Prime: 140 x 126 x 110 cm (55.1 x 49.6 x 43.3 in)
    J826 Prime: 82 x 131 x 66.5 cm (32.28 x 51.57 x 26.18 in)
    Material Cabinet: 111.9 x 65.6 x 63.7 cm (44 x 25.8 x 25.1 in)
    MACHINE WEIGHT
    J850 Prime: 430 kg (948 lbs)
    J826 Prime: 234 kg (516 lbs)
    Material Cabinet: 153 kg (337 lbs)
    BUILD MODES
    High Quality: up to 7 base resins, 14 micron (0.00055 in.) resolution
    High Mix: up to 7 base resins, 27 micron (0.001 in.) resolution
    High Speed: up to 3 base resins, 27 micron (0.001in.) resolution
    Super High Speed: 1 base resin, 55 micron (0.002 in.) resolution
    ACCURACY
    For J850 Prime: Typical deviation from STL dimensions, for models printed with rigid materials, based on size: under 100 mm ā€“ Ā±100Ī¼; above 100 mm ā€“ Ā±200Ī¼ or Ā± 0.06% of part length, whichever is greater.

    For J826 Prime: Typical deviation from STL dimensions, for models printed with rigid materials, based on size: under 100 mm ā€“ Ā±100Ī¼; above 100 mm ā€“ Ā±200Ī¼.
    BUILD RESOLUTION
    X-axis: 600 dpi; Y-axis: 600 dpi; Z-axis: 1800 dpi
    WORKSTATION COMPATIBILITY
    Windows 10
    NETWORK CONNECTIVITY
    LAN ā€“ TCP/IP
    POWER REQUIREMENTS
    100ā€“120 VAC, 50ā€“60 Hz, 13.5A , 1 phase
    220ā€“240 VAC, 50ā€“60 Hz, 7A , 1 phase
    SUPPORT MATERIALS
    SUP705 (water jet removable)
    SUP706B (soluble)
    REGULATORY COMPLIANCE
    CE, FCC
    SOFTWARE
    GrabCAD Print
    SPECIAL FACILITY REQUIREMENTS
    Ā 18 - 25Ā°C;
    Relative humidity 30-70 % (non-condensing)

    Software

    GrabCAD Print Software

    GrabCAD PrintĀ software makes 3D printing easy, accessible and connected. Read and understand CAD files natively to help you simplify the preparation, scheduling, monitoring, and reporting of all your print jobs. GrabCAD Print offers an efficient workflow that streamlines job management in shared office and model shop environments using Stratasys 3D Printers.



    Print directly from CAD
    Save time by directly printing CAD files, without converting and fixing STL files. You can also print directly from within Creo 4.0 or the SOLIDWORKSĀ® Add-in.

    Pantone Validated
    With nearly 2,000 available options, match PANTONE colors in a single click, with no time-consuming painting or trial-and-error matching.

    Get Started Fast
    Smart default settings, tooltips, andĀ notification help you to print seamlessly, without the need to fiddle with the settings.

    See what you’re doing
    Make necessary adjustments when required, with a detailed view of your model, tray, andĀ slice preview.


    Request A Quote Now

    PANTONEā„¢ Validated

    Print in Pantone

    When design decisions are color critical, the J8 Series printers provide PANTONE validation and make the PANTONE Matching System (PMS) colors available in 3D printed form. Color matching to PANTONE colors is possible in a single click from the GrabCAD Print software. By providing a quicker, more realistic expression of color in models and prototypes, organizations save hours over traditional paint matching or iterative color-matching processes.


    Request A Quote Now

    Resources

    Learn how Stratasys SUP706B soluble support material dissolves easily, giving you the freedom to print complex and delicate features, without the hassle of laborious post-processing.
