C100 EASY FAB

Easy and user-friendly ceramics 3D printer

The C100 EASY FAB is the smaller version of the Ceramics 3D printer developed by 3DCeram and marketed towards users in universities and R&D centers.

Components made by the C100 EASY FAB have better homogeneity when fired, higher density for the fired material, better resistance for the finished part, and more precise control of dimensional changes of the part during firing.

It is possible to scale up to C3600 ULTIMATE if required.

Categories: , Tags: , , , ,
Download Request a Quote Now

Description

Develop and prototype

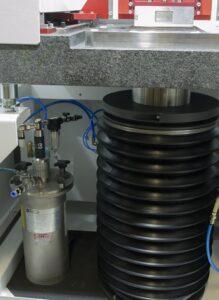

A pressure tank (1,5 liter) feeding to provide the material quantity required for an optimized run 100*100*150.

The C100 EASY FAB is a small and user-friendly ceramics 3D printer that supports open parameters in the production of parts.

The size also makes it accessible for persons with reduced mobility.

Ceramics 3D printed parts have the same properties as those parts produced conventionally – molding, machining, and injection.

The printer also has Free Link Support, a proprietary technology developed by 3DCeram for the manufacturing of 3D printing supports.

Parts can be produced without leaving support marks, helping to ensure better quality prints.

There is also a SAM (small amount of material) option that allows for the launch of a fast printing run with just 100 ml of slurry.

Get A Quote

Specifications


C100 EASY FAB
Dimensions
940 x 1060 x 1826 mm (WxDxH)
Build Platform Size
100 x 100 x 150 mm
Weight
750 kg
Electrical requirements
220-240 VAC / 50 Hz
Power
2kW
Light source
UV Laser
Laser Spot Diameter
~60 µm
UV Wavelength UV
405 nm
Layer thickness
0.010 – 0.125 mm
Operating temperature environment
20-25 °C
Room maximum temperature variation
1°C/hour
Relative humidity
50 %
Compressed air
6 bars dry
Hybrid option
At a later stage

Software

Materialise Creatz3D Partner









Materialise Magics Software

Materialise Magics is a versatile, industry-leading data preparation and STL editor software for Additive Manufacturing that allows you to convert files to STL, repair errors, edit your design and prepare your build platform. With decades of 3D printing software experience, it sets the industry standard and is top data preparation software choice for companies worldwide.

Benefits of using Materialise Magics software:

Key Benefits

Extensive and user-friendly Programs

Smart data preparation process
Optimizes material usage &
success rates of printed parts

1 Software Platform used across
the different machines
Key Features

Import most file formats
Retaining native colour data

Repair errors
Create watertight data

Duplicate & Orientate parts,
Generate support for metal
and Stereo-lithography parts

Measure parts
View slices
Detect collisions
Save platforms
Generate reports


Add labels to your part.
Apply texture, create lattice structures

Perform Boolean operations.
