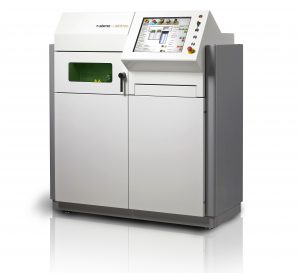

Sisma MySint100 Metal 3D Printer

Redefining the object creation process

With SISMA Additive Manufacturing systems which utilises the patented Laser Metal Fusion technology, MySint100 can achieve the precise and elaborate 3D printed metal objects exactly as you envision. This innovation employs state of the art metal 3D printing technology to simplify and shorten the entire object creation process, hence optimising production.



Description

Versatile Metal 3D Printer For Every Purpose

MySint100 comes in 3 versions, MySint100 – Jewellery Metal 3D Printer, MySint100 – Industry Metal 3D Printer and MySint100 – Dental Metal 3D Printer, 3 variations of the same product with slight differences in their specifications to suit the needs of the different industries they are used in and maximise results.



KEY FEATURES

Customisation


Create customised intricate objects with
a diverse selection of materials

Revolutionise
Manufacturing


Break free of the constraints of
traditional manufacturing methods

Expediting Production


Reduce inventory and lengthy design
re-adjustment procedure



Each MySint100 printer has been specifically designed to cater to the needs of various industries.



MySint100 – Jewellery
MySint100 – Industry
MySint100 – Dental
MySint100 Product Image
MySint100 Product Image
MySint100 Product Image
The possibilities for experimentation are endless with this metal 3D printer solely dedicated to the jewellery industry
This 3D printer will accelerate the design and production cycle of your product, leading to shorter production times and faster launching of products
This 3D printer will expedite the production process of dental products such as crowns and abutments and make it an easy and hassle free process

Specifications


MySint 100 — Jewellery Metal 3D Printer
MySint 100 —
Industry Metal 3D Printer
MySint 100 —
Dental Metal 3D Printer
Effective interchangable cylinder volume
Ø 100 × 80 mm
Ø 85 × 80 mm
Ø 63.5 × 80 mm
Ø 50 × 80 mm
Ø 34.5 × 80 mm
Ø 100 × 100mm
Ø 100 × 100mm
Laser spot diameter
30 μm
55 μm
55 μm
Laser source precision optics
Fiber Laser 200W
Fiber Laser 200W
Fiber Laser 200W
Precision optics
Quartz F-Theta Lense
Quartz F-Theta Lense
Quartz F-Theta Lense
Typical layer thickness (adjustable)
15 – 20 μm
20 – 30 μm
20 – 30 μm
Power Supply
220 – 240 V
1 ph – 50/60 Hz
220 – 240 V
1 ph – 50/60 Hz
220 – 240 V
1 ph – 50/60 Hz
Machine dimensions
1390 x 1600 x 777 mm
1390 x 1600 x 777 mm
1390 x 1600 x 777 mm
Net Weight
650 Kg
650 Kg
650 Kg
Max power absorbed
1000 VA
1000 VA
1000 VA
O2 concentration
0.3%
< 0.1%
0.3%
Inert gas supply
Nitrogen, Argon
Nitrogen, Argon
Nitrogen, Argon
Inert gas consumption
< 0.3% L/min @ 0.5% O2
< 0.3% L/min @ 0.5% O2
< 0.3% L/min @ 0.5% O2
Noise
< 70 dB
< 70 dB
< 70 dB
Door
-
Glove Box
-
Filter unit
-
Removable
-
Materials
Precious Metals, Bronze, Cobalt Chrome, Stainless Steel, Managing Steel, Nickel Alloys, *Aluminium,*Titanium,
(*Option RM)
Precious Metals, Bronze, Cobalt Chrome, Stainless Steel, Managing Steel, Nickel Alloys, Aluminium, Titanium
Precious Metals, Bronze, Cobalt Chrome, Stainless Steel, Managing Steel, Nickel Alloys, *Aluminium, *Titanium, (*Option RM)
Options
Removable filter unit,
Glove box
Finer laser spot (30 μm),
Interchangable cylinders
Finer laser spot (30 μm),
Interchangable cylinders,
Removable filter unit,
Glove box

Software

Materialise Creatz3D Partner









Materialise Magics Software

Materialise Magics is a versatile, industry-leading data preparation and STL editor software for Additive Manufacturing that allows you to convert files to STL, repair errors, edit your design and prepare your build platform. With decades of 3D printing software experience, it sets the industry standard and is top data preparation software choice for companies worldwide.

Benefits of using Materialise Magics software:

Key Benefits

Extensive and user-friendly Programs

Smart data preparation process
Optimizes material usage &
success rates of printed parts

1 Software Platform used across
the different machines
Key Features

Import most file formats
Retaining native colour data

Repair errors
Create watertight data

Duplicate & Orientate parts,
Generate support for metal
and Stereo-lithography parts

Measure parts
View slices
Detect collisions
Save platforms
Generate reports


Add labels to your part.
Apply texture, create lattice structures

Perform Boolean operations.
