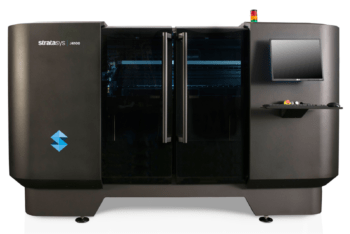

Stratasys J4100 3D Printer

Ultra-Large Build Tray
For Parts of Any Sizes

Production level shouldn’t be limited by your tools. With an ultra-large build tray, Stratasys J4100 3D Printer can handle parts of any sizes and complexity.

Print smarter and faster for unlimited design possibilities and improved productivity thanks to the fast throughput and a wide range of material properties.

Save big on printing time and reduced cost-per-part.

The J4100 offers over 2,000 square feet of build space, allowing you to print meter-long parts in one build or multiple smaller parts.

Printed parts require little or no post-processing for typical cases. Support material is quickly removed with a WaterJet, and for most applications the smooth, multi-material parts require no polishing or painting.

With GrabCAD Print, Objet30 offers a user-friendly workflow for faster printing and easier print job management.

Categories: , Tags: , ,
Download Spec Sheet Request a Quote Now

Description

Large Build Volume means increased efficiency

You can’t afford to choose between productivity and part quality when it comes to additive manufacturing for your business operations – you need both, not to mention an efficient workflow.

Now, with the J4100, there’s no need to compromise. The large build volume with excellent accuracy and precision, plus a wider range of materials gives you all the flexibility you need to optimize operations, save time and get products to market faster.

J4100 Material Options

With the J4100, you have the flexibility of choosing from multiple materials for a variety of applications, including flexible and transparent materials for the most realistic models.

Agilus30

Mimic the look and feel of rubberlike products with this flexible photopolymer.

VeroUltraClear

With high clarity and low yellow index, this transparent material is ideal for prototyping packaging, lighting components or eyewear.

Vero

Multipurpose rigid material that is available in four opaque shades: blue, gray, black, and white.

Digital ABS Plus

Digital material that simulates durable production plastics, offering high impact strength and heat resistance.

4 Reasons to get J4100 3D Printer

  1. IMPROVED ACCURACY
    From 96 nozzles to 192 – the newest generation of printing heads offers twice the nozzles for improved accuracy and precise 3D prints.
  2. ACCELERATE TIME-TO-PART
    With improved High Speed and Super High Speed print modes, get up to 80% faster throughput than its predecessor, Objet1000 Plus offers.
  3. IMPROVED REALISM
    Enjoy better part realism and functionality with new material options – flexible Agilus30 family, rigid VeroPureWhite, and transparent VeroUltraClear.
  4. INCREASED EFFICIENCY
    improved multi-material capabilities and a roomy build tray mean more flexibility in printing applications. Spend less time swapping out cartridges and more time printing parts.

WHITE PAPER

Endless Possibilities
Increased Productivity

With an ultra-large build tray, all that size means lots of flexibility when it comes to printing, and the versatility to choose just the right material for your application.

But, a 3D printer is just a catalyst to create the prototypes you need. Without the proper material, it’s impossible for your printer to produce the end result you’re looking for.

If you’re looking for smooth, perfect, finished, flexible, colorful surfaces, there’s only one material option for you: PolyJet.

In this Whitepaper, learn all about the things you need to know about the versatile and flexible materials that has provided a solution for so many companies across so many industries.

DOWNLOAD WHITE PAPER

    Specifications

    J4100
    MODEL MATERIALS
    Neutral: VeroPureWhiteâ„¢, VeroBlackPlusâ„¢, VeroBlueâ„¢, VeroGreyâ„¢
    Transparent: VeroClearâ„¢, VeroUltraClearâ„¢
    Flexible: Agilus30 Black, Agilus30 Clear
    Digital Materials: Digital ABS Plusâ„¢ Ivory, Digital ABS Plusâ„¢ Green
    SUPPORT MATERIALS
    SUP705â„¢ (Water Jet removable)
    BUILD SIZE/
    PRINT AREA
    1000 x 800 x 500 mm
    LAYER THICKNESS
    Horizontal build layers range between
    27 microns - 55 microns
    (0.001 in. - 0.002 in.)
    depending on the print mode.
    WORKSTATION COMPATIBILITY
    Windows 7
    NETWORK CONNECTIVITY
    LAN – TCP/IP
    SYSTEM SIZE
    1960 x 2868 x 2102 mm
    SYSTEM WEIGHT
    22000 kg
    OPERATING CONDITIONS
    Temperature 18 – 25 ˚C (64 – 77 ˚F); relative humidity 30-70% (non-condensing)
    POWER REQUIREMENTS
    230 VAC 50/60 Hz, 8A single phase
    REGULATORY COMPLIANCE
    CE, FCC
    SOFTWARE
    GrabCAD Printâ„¢ with KATANA Slicer
    BUILD MODES
    High Speed: up to 3 base resins, 27 micron (0.001 in.) resolution
    Super High Speed: 1 base resin, 55 micron (0.002 in.) resolution
    XY RESOLUTION
    300x600 DPI

    Request A Quote Now

    Software

    GrabCAD Print Software

    GrabCAD Print software makes 3D printing easy, accessible and connected. Read and understand CAD files natively to help you simplify the preparation, scheduling, monitoring, and reporting of all your print jobs. GrabCAD Print offers an efficient workflow that streamlines job management in shared office and model shop environments using Stratasys 3D Printers.

    Print directly from CAD
    Save time by directly printing CAD files, without converting and fixing STL files. You can also print directly from within Creo 4.0 or the SOLIDWORKS® Add-in.

    Get Started Fast
    Smart default settings, tooltips, and notification help you to print seamlessly, without the need to fiddle with the settings.

    See what you’re doing
    Make necessary adjustments when required, with a detailed view of your model, tray, and slice preview. Now supports KeyShot® Render for realistic 3D prints within a matter of hours.

    CMF Support
    Simplify your 3D print workflow with support for 3MF file format, which contains data on textures, materials, colors, and more.
