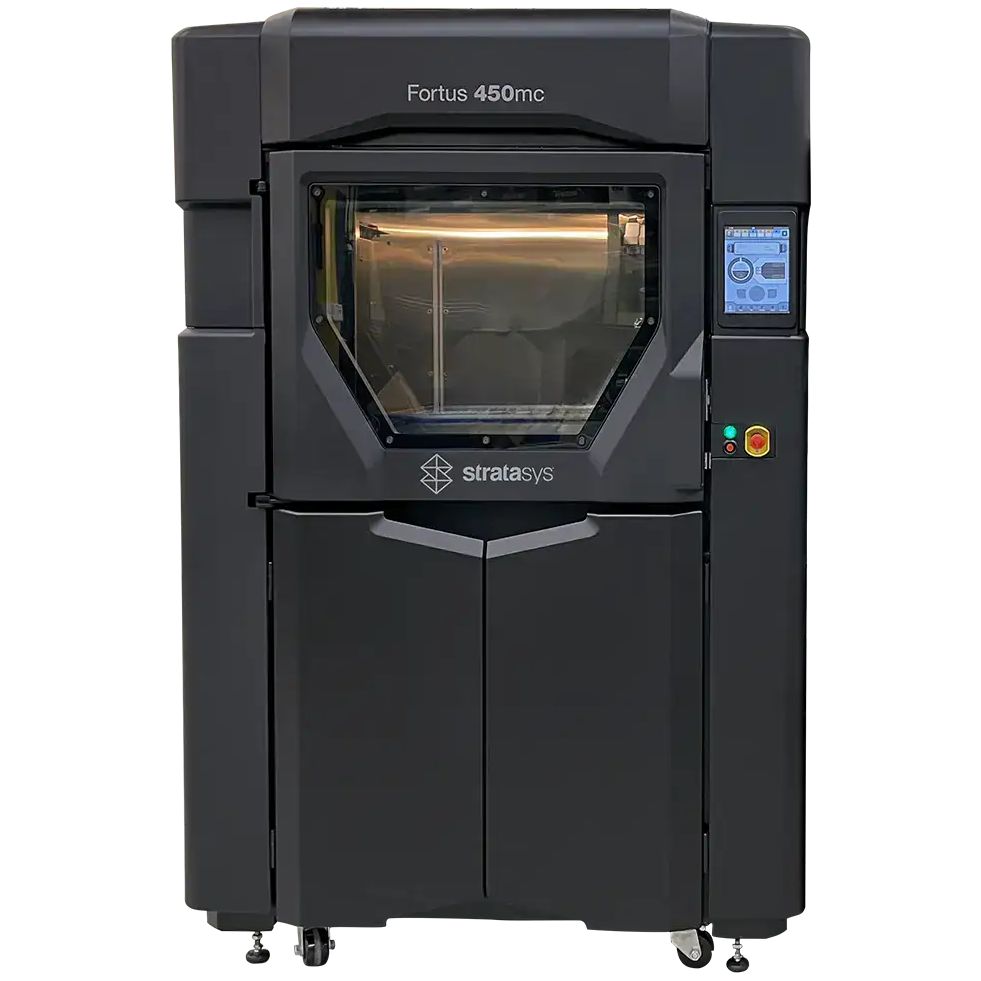

Stratasys Fortus 450mc

Fortifying your Industrial Prowess

The Stratasys Fortus 450mc 3D Printer is a production workhorse that guarantees 3D printed components using engineering-grade thermoplastics.

They are ideal for engineers who require demanding flexibility to print larger-sized or many parts with reliability, repeatability, and durability that are unmatched in the industry.

From functional prototypes with exacting tolerances to manufacturing tools that perform under pressure, achieve true industrial-grade performance.


Categories: , Tags: , ,
Download Brochure Request a Quote Now

Description

Stronger, Faster, Better

Stratasys FDM technology gives you unmatched versatility and proven performance.

Build parts in the materials you’re familiar with, but with the advanced complexity and high requirements needed for today’s manufacturers. With easy-to-use interfaces and software controls, the Fortus printing systems make it easy to produce complex parts more efficiently and effectively.

Build Bigger Parts

FDM systems are as versatile and durable as the
parts they produce. The Fortus 450mc lets you print complex large-sized or many parts with ease.

As true production workhorses, the 450mc consistently delivers high throughput, duty cycles, and utilization rates that make digital manufacturing highly practical.

Unrivaled Repeatability

When using 3D printing for validation prototypes and the production of finished goods, using a durable, proven thermoplastic is all the more important, and it may be the the only choice for many applications.

Production-Grade Materials

Print with ABS-ESD7, ABS-M30, ABS-M30i, Antero 800NA, ASA, Nylon 12, Nylon 12CF, PC, PC-ABS, PC-ISO, ULTEM 9085, ULTEM 1010, ST-130 production-grade thermoplastics, and more.

Learn More

Transforming Manufacturing with Stratasys FDM Technology

Built for the production floor, Stratasys FDM 3D printers give you the ability to create tooling, end-use parts, and prototypes for demanding fields such as medical, aerospace, automotive, government, military, consumer products, medical equipment and more.

And using the materials you’re familiar with as well as other standard and engineering-grade thermoplastics, you can tackle applications that require tight tolerances, toughness, and environmental stability as well as specialized properties like electrostatic dissipation, translucence, biocompatibility, and more.

F450mc is part of the Stratasys FDM Production 3D Printer family including the F370 and F900.

Download Manufacturing with FDM Brochure

Specifications



Stratasys 450mc 3D Printer Specifications
BUILD ENVELOPE
406 x 355 x 406 mm (16 x 14 x 16 in.)
MATERIAL DELIVERY OPTIONS
Two bays each for material and support canisters
LAYER THICKNESS
0.330 mm (0.013 in.)
0.254 mm (0.010 in.)
0.178 mm (0.007 in.)
0.127 mm (0.005 in.)
SUPPORT STRUCTURES
Soluble for most materials;
break-away for PC-ISO, ULTEM, and PPSF;
soluble or break-away for PC
SYSTEM SIZE & WEIGHT
127 x 90.17 x 194.31 cm (50 x 25.5 x 76.5 in.)

with crate: 680 kg (1,500 lbs.)
without crate: 601 kg (1,325 lbs.)
ACHIEVABLE ACCURACY
Parts are produced within an accuracy of ± .127 mm (± .005 in.)
or ± .0015 mm/mm (± .0015 in/in), whichever is greater.

(Accuracy is geometry dependent. Achievable accuracy specification
derived from statistical data at 95% dimensional yield.)
NETWORK COMMUNICATION
10/100 base T connection; Ethernet protocol
POWER REQUIREMENTS
280C, 50/60 Hz, 3 phase,
16A/phase (20 amp dedicated circuit required)
REGULATORY COMPLIANCE
CE
SPECIAL FACILITY REQUIREMENTS
None

Software

GrabCAD Software

GrabCAD software is able to read most CAD file formats before generating tool paths including support structures.

KEY FEATURES

Ability to scale 3D models
to desired size.

Optimum Control over orientation,
print parameters and material
assignments of your 3D printed model.

Automatic or custom packs
for multiple models and
assembled files in one build.

3D slicing preview
(For FDM 3D Printers).

Multi-language Support.

GrabCAD Voxel Print delivers unprecedented
user control over color and material placement.

insight software 3d printing

Insight Software

Insight software organizes your 3D CAD program STL output by automated slicing, generating support structures and creating material extrusion paths.

Users can manually edit parameters to establish the look, strength and precision of parts as well as the speed and material use of the FDM process.



KEY FEATURES

Optimum build orientation for
maximum strength and
smooth surface finish.

Manipulate tool paths for
advanced control over part properties.

Customisable supports for
quick, easy removal and best
use of materials.

Control Center for communication
with user workstations
and Fortus 3D Printers.

Support Removal

SCA-3600

For water-soluble support, the SCA-3600 dissolves support from large 3D models created on the Fortus 900mc 3D Printer.

KEY FEATURES


Optimum nozzle & pump
designs for faster removal
of supports on all types
of 3D printed models.


Large build capacity to clean
large part, or multiple smaller
parts in its roomy tank
at a faster rate.


User-selectable temperature
presets for certain
material to be cleaned at
optimum temperatures.

Break-away support is easily removable by hand.
