Stratasys J5 MediJet for Medical 3D Printing

All-in-one medical printer

With multiple materials and multicolour capabilities, the Stratasys J5 MediJet sets a new standard in medical modelling with the ability to create brilliant vivid anatomical models, drilling and cutting guides that are sterilizable, and biocompatible, on a single build tray.

All on a certified system platform for hospitals, academic medical centres, and medical device makers.

With lower up-front investment and a small footprint, the latest medical printer is economical and compact enough for small lab spaces.

The new standard for planning, education, and testing – maximize your 3D printing investment today.

Categories: , Tags: , , , ,
Download Brochure Request a Quote Now

Description

Who is it for

MEDICAL
ACADEMIC
CENTERS


HOSPITALS



MEDICAL
DEVICE
COMPANIES

The new standard for
planning, education, and testing

Enhance training and education programs and improve the product quality of 3D printing medical devices.

Create consistency in device development and testing to reduce costs, and accelerate time to market.

Scale up product demonstrations when doing training for a new medical device by providing models that replicate the disease state your device is intended to treat – no storage requirements or ethical concerns associated with animal and cadaver models.

Improve point-of-care planning, patient satisfaction, and training and education at Hospitals and Academic Medical Centers.

3D printed medical models for on-demand training and pre-surgical planning enable you to reduce complications and decrease hospital stay duration.

Data demonstrates that patient satisfaction improves when 3D medical models are used as part of education for informed consent.

All on a certified system

  • 510k cleared for clinical diagnostic use with leading
    segmentation software companies
  • Biocompatibility certification
    – ISO 10993-1:2018 for limited contact to tissue and bone and permanent contact to intact skin
    – ISO 18562-1:2017 for breathing gas pathways in
    healthcare applications
  • Sterilization methods
    – Steam, Gamma, and EtO for
    MED610 and MED615RGD
    – Steam, Gamma, and EtO for
    Rigid Transparent family
  • ISO 13485 Certified (material and hardware manufacturing sites)
Download Sterilization Test Report

Materials for J5 MediJet

Biocompatible Opaque (MED615RGD IV)

Rigid Ivory, sterilizable, biocompatible material medically approved for bodily contact.

DraftWhite
(MED837)

Opaque, UV resistant, low-cost model material, which aims to lower the cost of single material applications and bulk colour models.

Elastico Clear
(FLX934)

Transparent flexible material with Shore A value of 45, with superior tear-resistant and elongation.

Biocompatible rigid transparent (MED610)

Transparent, sterilizable, biocompatible material medically approved for bodily contact.

Vero

Unique multicolour capabilities to produce sterilizable, smooth, accurate, and realistic models.

Simplified medical 3D printing workflow

*Compared to six types of anatomical models printed with Formlabs Form3, Projet 3600, Projet 6000, and Mimaki 3DUJ-553.

GrabCAD Print integration means the entire 3D printing workflow is simplified right from the design phase. The large build tray allows for multiple models in a single print, and thus significantly less handling.

  • Automatically corrects files and reduces print time with automatic tray arrangement.
  • Calculate the time and material resources needed for production before printing.
  • 3MF file supported – significantly simplifies colour assignment in your workflow
  • User is alerted if there has been cross-contamination with a biocompatible material.
  • Schedule and monitor the print job remotely from your mobile device or browser.
  • Get notified remotely when the job has finished printing.

Lower total cost of ownership

The Stratasys J5 MediJet is designed to maximize your investment in 3D printing.

With less upfront investment and a lower total cost of ownership, all application needs can be met with one platform – no need for multiple printers.

Make a big impact today.

Applications

So with medical 3D printing, what kind of application can you make with Stratasys J5 MediJet?

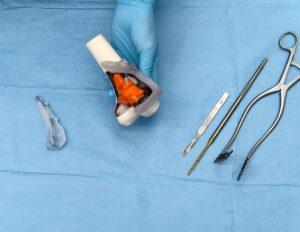

Drilling, Cutting Guide

Drilling, Cutting Guide

Kidney Models

Kidney Models

Mandible Lower Jaw

Mandible Lower Jaw

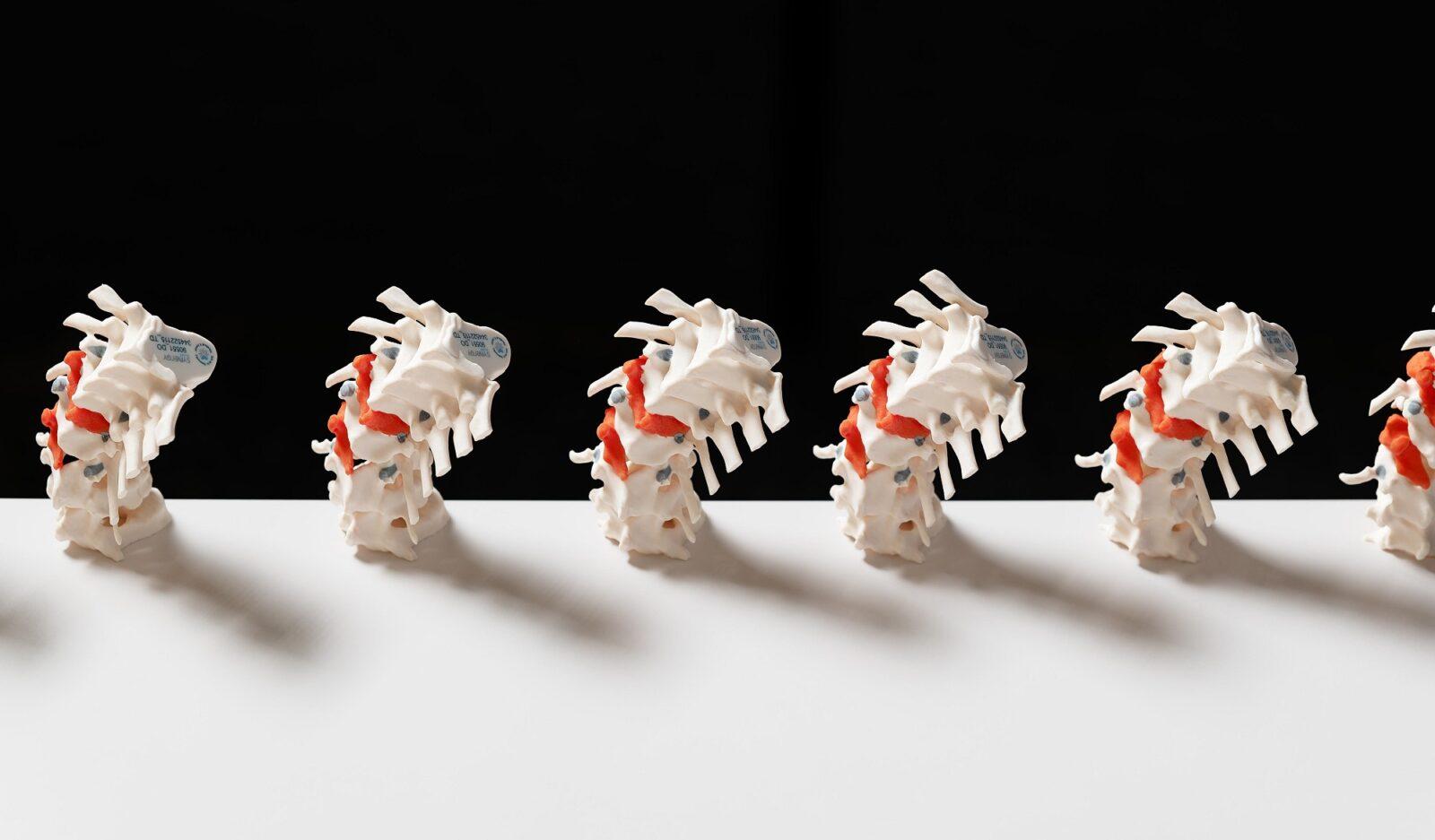

Spine Models

Spine Models

Cardiac Models

Cardiac Models

Kidney Models

Kidney Models

Mandible Lower Jaw

Mandible Lower Jaw

Cardiac Models

Cardiac Models

Pre-Surgical Planning

Printed models give physicians an invaluable tool to understand complex anatomy and work with the team on the best approach.

Patient-specific surgical guides also help to reduce OR time and improve patient education for more informed consent.

Finally, medical 3D printing enables you to save precious time and cost and minimize risks with pre-case planning.

Education and Training

Print on-demand precise and accurate anatomy models which you can take with you anywhere for training.

Product demonstrations can be scaled up if needed to train field staff and physicians on a new device.

There are no storage requirements or ethical concerns associated with animal and cadaver models.

Surgical guides and tooling

Create drilling and cutting guides* that are sterilizable and biocompatible.

*With approved 3rd party 510k cleared segmentation software.

Medical Device Development

Create accurate anatomy for repeatable benchtop testing and consistent training.

Enhance product and training quality, reduce costs, and accelerate time to market.

Minimize manual labour and maximize production without sacrificing quality.

Comparison

If you’re looking for an economical, compact, all-in-one medical modelling printer, Creatz3D’s J5 MediJet will be the right choice for you. If you’re looking to create more advanced models, there’s the J750 Digital Anatomy Printer. Here are the specs for comparison.

Specifications

Stratasys J5 MediJet
MODEL MATERIALS
Biocompatible materials:
  • Rigid transparent (MED610)
  • Opaque (MED615RGDâ„¢ IV)

    Rubber-like:
  • Elastico Clear (FLX934)

    Vibrant colors including:
  • VeroCyanV (RGD845)
  • VeroMagentaV (RGD852)
  • VeroYellowV (RGD838)
  • VeroUltra ClearS
  • VeroBlackPlus
  • DraftWhite (MED837)
    		•
    SUPPORTED STERILIZATION PROCESSES
    Steam (4 minutes at 132 °C), Gamma (25 – 50 kGy),
    EtO (specifications available upon request)
    DIGITAL MODEL MATERIALS
    Unlimited number of composite materials including over 500,000 colors
    SUPPORT MATERIALS
    SUP710 (WaterJet removable)
    BUILD TRAY
    Printing area: 1,174cm2
    Max Part Size: Up to 140 x 200 x 190mm
    LAYER THICKNESS
    Horizontal build layers down to 18 microns (.0007 in.)
    ACCURACY
    Deviation from STL dimensions with rigid materials,based on size:
    under 100 mm – ±150μ; above 100 mm – ±0.15% of part length.*

    * true for 67% (1 sigma) models printed
    NETWORK CONNECTIVITY
    LAN-TCP/IP
    SYSTEM SIZE AND WEIGHT
    651 x 661 x 1511 mm; 228 kg
    OPERATING CONDITIONS
    Temperature 18 – 25˚C (64 – 77˚F);
    relative humidity 30-70% (non-condensing)
    POWER REQUIREMENTS
    100 - 120 VAC, 50 - 60Hz, 10A, 1 phase
    REGULATORY COMPLIANCE
    CE, FCC, EAC
    SOFTWARE
    GrabCAD Print
    BUILD MODES
    High Quality Speed (HQS) – 18.75μm

    Request A Quote Now

    Applications

    So what are the kind of applications that you can make with Stratasys J5 MediJet?


    Pre-Surgical Planning

    Printed models give physicians an invaluable tool to understand complex anatomy and work with the team on the best approach.

    Patient-specific surgical guides also help to reduce OR time and improve patient education for more informed consent.

    Finally, you save precious time and cost and minimize risks with pre-case planning.

    Education and Training

    Print on-demand precise and accurate anatomy models which you can take with you anywhere for training.

    Product demonstrations can be scaled up if needed to train field staff and physicians on a new device.

    There are no storage requirements or ethical concerns associated with animal and cadaver models.


    Surgical guides and tooling

    Create drilling and cutting guides* that are sterilizable and biocompatible.

    *With approved 3rd party 510k cleared segmentation software.


    Medical Device Development

    Create accurate anatomy for repeatable benchtop testing and consistent training.

    Enhance product and training quality, reduce costs, and accelerate time to market.

    Minimize manual labor and maximize production without sacrificing quality.

    Comparison

    If you’re looking for an economical, compact, all-in-one medical modeling printer, the J5 MediJet is it. If you’re looking to create more advanced models, there’s the J750 Digital Anatomy Printer. Here are the specs for comparison.

    Download Detailed Comparison

    J5 MediJet
    J750 Digital Anatomy Printer
    The economical, compact, all-in-one medical modeling printer.The most advanced medical modeling printer to create biomechanically accurate anatomical models.
    APPLICATIONS
  • Pre-surgical planning models
  • Training and education models
  • Surgical guides and tooling
  • Medical device development models
    		• All models can mimic close to the same biomechanical properties as native tissue and bone enabling you to cut, suture, drill, and insert devices just as you would with human anatomy.
  • Pre-surgical planning models
  • Training and education models
  • Medical device development models
    		•
    MODEL MATERIALS
    		Biocompatible rigid transparent (MED610)
  • Biocompatible Opaque
    (MED615RGDâ„¢ IV)
  • DraftWhite (MED837)
  • Rubberlike: Elastico Clear (FLX934)
  • Rigid Transparent: Vero Vivid family that includes VeroCyanV, VeroMagentaV, VeroYellowV, VeroBlackPlusâ„¢, VeroUltraâ„¢ClearS
  • Rigid Opaque: Vero family including natural and color shades and VeroUltraâ„¢ opaque materials in black and white.

  • Rigid Transparent: Vero Vivid family that includes VeroCyanV, VeroMagentaV, VeroYellowV

  • Rubberlike: TangoPlusâ„¢, TangoBlackPlusâ„¢ and Agilus30â„¢ family

  • Transparent: VeroClear, VeroUltraâ„¢Clear, RGD720 and
    Biocompatible Clear (MED610)

  • Digital ABSâ„¢: Digital ABS Plus Ivory (RGD515 Plus &
    RGD531), Digital ABS Plus Green (RGD515 Plus & RGD535)
  • VeroFlex and VeroFlexVivid Families

  • Biocompatible Clear (MED610)
  • Biocompatible Opaque (MED615RGDâ„¢ IV)

  • Digital Anatomy materials to mimic human tissue and replicate anatomies
    - TissueMatrixâ„¢: Ultra-soft material
    - GelMatrixâ„¢: Enables support removal from blood
    vessel models
    - BoneMatrixâ„¢: High-strength material for bone and
    connective tissue
    		•
    MAX MATERIALS
    		57
    SUPPORT MATERIALS
    		SUP710SUP705 (WaterJet removable)
    SUP705B (APJ)
    SUP706B (soluble)
    GelMatrix (gel-like)
    SOFTWARE
    		GrabCAD PrintGrabCAD Print
    GrabCAD Print Digital Anatomy
    LAYER THICKNESS
    		18 microns (0.0007 in.)Horizontal build layers range between 14 microns – 27 microns
    (.00055 in. – .001 in.) depending on the print mode.
    MAXIMUM BUILD SIZE
    		140 x 200 x 190 mm
    Up to 1,174 cm²    		490 × 390 × 200 mm
    SYSTEM SIZE
    		651 x 661 x 1511 mm1,400 x 1,260 x 1,100 mm

    Material Cabinet: 670 x 1,170 x 640 mm
    Accuracy
    		Deviation from STL dimensions, for 1 Sigma (67%) of models printed with rigid materials, based on size: under 100 mm – ±150μ; above 100 mm – ±0.15% of part length.* Deviation from STL dimensions, for 2 Sigma (95%) of models printed with rigid materials, based on size: under 100 mm – ±180μ; above 100 mm – ±0.2% of part length.Vero Materials: Typical deviation from STL dimensions, for models printed with rigid materials, based on size: under 100 mm – ±100μ; above100 mm – ±200μ or ± 0.06% of part length, whichever is greater.

    Digital Anatomy Materials: Not validated for accuracy, see technical documentation for design guidelines.
