MakerBot METHOD X Carbon Fiber Edition

MakerBot METHOD X Carbon Fiber Edition builds on METHOD’s unique industrial desktop platform and comes pre-configured with a new composite extruder that allows it to handle abrasive materials like the new Carbon fiber reinforced nylon and other engineering-grade composites.

METHOD’s newly introduced heated chamber annealing feature allows you to print complex part geometries with internal cavities, with MakerBot’s PVA soluble support material that anneals the final part for extra strength. Take your 3D printing capabilities to the next level with MakerBot’s innovative technology.

We are authorized distributors for MakerBot 3D Printers and MakerBot materials in Singapore, Malaysia, Vietnam.

10 Reasons to Choose METHOD X

Categories: , Tags: , , ,
Download Brochure Request a Quote Now

Description

METHOD X CARBON FIBER EDITION

Carbon-Fiber-Propeller-print

PRINT STRONG AND HEAT-RESISTANT METAL REPLACEMENT PARTS

Optimized for high strength, stiffness, and heat resistance, Nylon Carbon Fiber is ideal for structural applications and metal replacements.

Filament-hero-Nylon-Carbon-Fiber-Creatz3d

ACHIEVE SUPERIOR NYLON CARBON FIBER PARTS

Produces parts with superior three-dimensional strength, accuracy, and pristine surface finish with the METHOD’s unique industrial-leading feature set.

WHY METHOD?

110°C Circulating Heated Chamber Delivers Stronger Manufacturing-Grade Parts

Open Platform for 3rd Party Advanced Engineering Materials

Guaranteed Part Accuracy ± 0.2mm and Stratasys SR-30 Soluble Support

Save precious Engineering Time with an Automated Workflow and CAD Integration

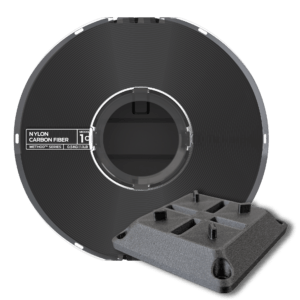

Carbon fiber reinforced nylon 6/66 blend for high strength to weight ratio and heat resistance. For max performance in controlled environments.

– 184°C HDT @0.455 MPa
– 110 MPa Tensile Strength
– 7600 MPa Tensile Modulus

Optimal performance requires extra steps
and a controlled environment.

The filament should be dried before printing.

Higher print temp may result in stringing.

Carbon fiber reinforced nylon 12 provides the easiest carbon fiber composite 3D printing experience thanks to superior moisture resistance. For consistent performance in any environment.

– 154°C HDT @0.455 MPa
– 66 MPa Tensile Strength
– 6000 MPa Tensile Modulus

No additional steps required before or after print process

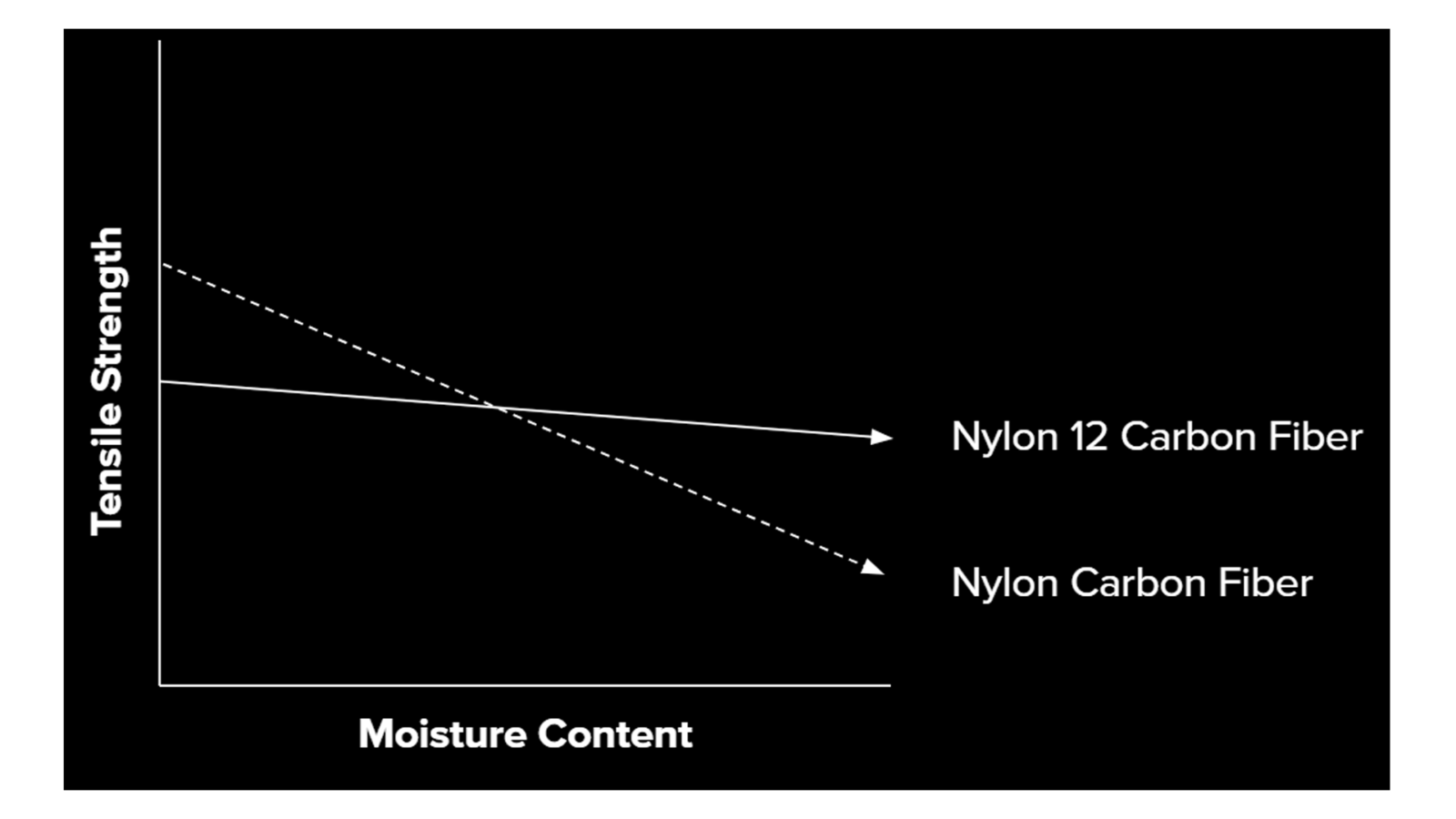

Nylon (6/66) Carbon Fiber has the highest peak performance in all categories, it is significantly affected by moisture which will reduce both strength and modulus.

Nylon 12 Carbon Fiber is less affected by moisture and will retain more of its performance in the presence of moisture.

APPLICATIONS

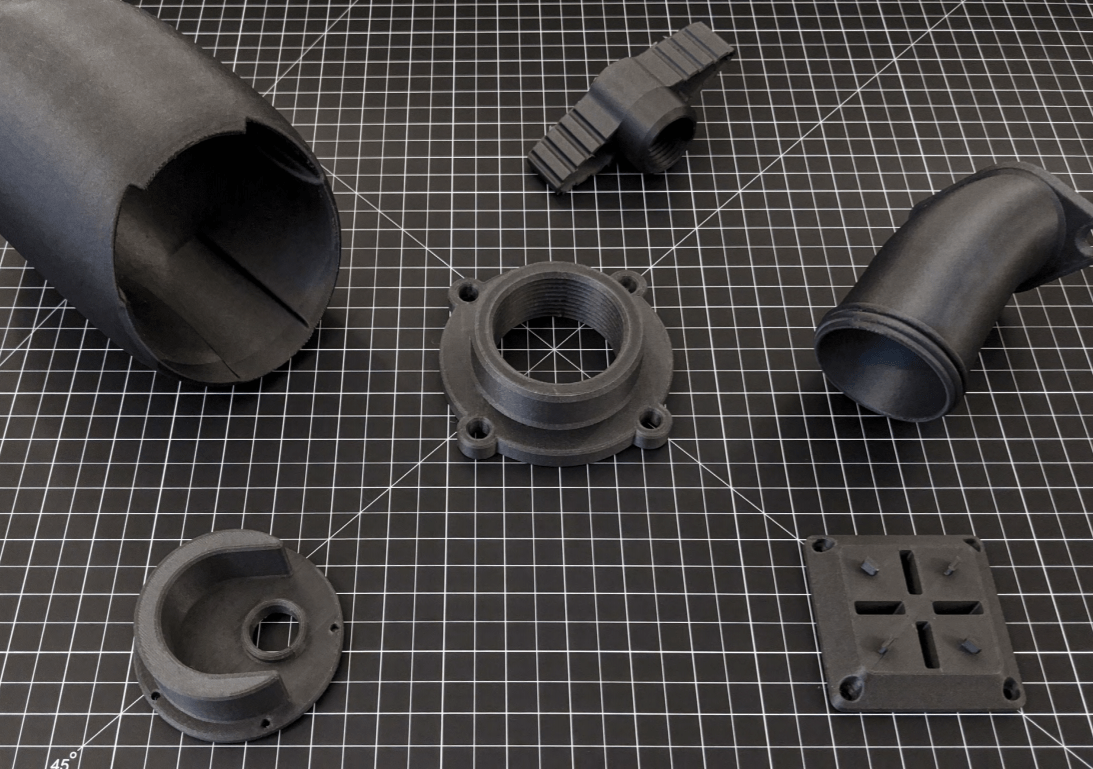

Nylon Carbon Fiber offers an ideal lightweight alternative to metal for structural applications such as vehicular brackets and inspection gauges, manufacturing tools such as robotic end effectors, and under-hood applications, across the manufacturing, automotive, and aerospace industries.  Using the latest in 3D printing technology, the MakerBot METHOD X allows you to mould this high-strength and heat-resistant material for a wide range of industrial applications.

Nylon Carbon Fiber Edition also supports materials available for the METHOD platform and MakerBot Labs.

Click For MakerBot Materials

MAKERBOT METHOD X

Get industrial 3D printing performance with the MakerBot METHOD X – the next-generation desktop 3D printing platform that will help you stay ahead of the competition in Singapore.

Leveraging on industry-leading Stratasys® patents including high-quality components like a 110°C circulating heated chamber, precision dissolvable supports, and more, print dimensionally-accurate production-grade end-use parts at a fraction of traditional manufacturing costs.  The MakerBot METHOD X supports a wide range of materials including ABS, PC-ABS, ASA, Nylon Carbon Fiber, SR-30, and more.

Click For MakerBot METHOD X

FAQ


What is the difference between METHOD X and METHOD X Carbon Fiber Edition?
METHOD X Carbon Fiber Edition comes pre-configured with a composite extruder for you to 3D print Nylon Carbon Fiber and other composite materials.

What if I have an existing METHOD or METHOD X 3D Printer? Can I still print with Nylon Carbon Fiber?
You will need to get a Composite Extruder upgrade to print Nylon Carbon Fiber. Reach out to us to find out about Creatz3D’s customised solutions for all your 3D printing needs in Singapore.

Can I print with other MakerBot Materials on METHOD X Carbon Fiber Edition?
You can print with all model materials supported by METHOD platform and are not limited to carbon fiber. Find out more about the METHOD X or get in touch for enquiries about the latest 3D printing technology in Singapore.

Request a Quote Now

Specifications


MakerBot METHOD X Carbon Fiber Edition
PRODUCT DIMENSIONS
43.7 (L) x 41.3 (W) x 64.9 (H) cm
PRODUCT WEIGHT
29.5 kg
MATERIALS
Precision Materials: ABS, ASA, PC-ABS, PC-ABS FR, PLA, TOUGH, ABS-R

Specialty Materials: NYLON Carbon Fiber, NYLON, PETG
SUPPORT
PVA, SR-30, RapidRinse™
CHAMBER TEMPERATURE
Up to 110°C
BUILD VOLUME
Single Extrusion -19 (L) x 19 (W) x 19.6 (H) cm
(print settings coming soon)

Double Extrusion - 15.2 (L) x 19 (W) x 19.6 (H) cm
PRINT MODES
100 microns - High Quality Print Mode (coming soon)
200 microns - Balanced Print Mode
DIMENSIONAL ACCURACY
± 0.2 mm of travel - whichever is greater.
Based on internal testing of selected geometries.
LAYER RESOLUTION
20 - 400 micron (max capability)
POWER REQUIREMENTS
100 - 240 V
8.1A - 3.4A, 50/60 Hz
800 W max.
AMBIENT OPERATING TEMPERATURE
15 - 26°C, 10 -70% RH non-condensing
STORAGE TEMPERATURE
0 - 38°C
SOFTWARE BUNDLE
MakerBot Print, MakerBot Mobile
OPERATING SYSTEMS
Windows (7, 10)
Mac OS X (10.9+)

Request a Quote Now

Features

METHOD X CARBON FIBER EDITION
Features

110° CIRCULATING HEATED CHAMBER

Control the temperature and quality of every layer – not just the first. While heated build plates are effective at reducing warping, Method takes this further with full active heat immersion during the entire duration of the print.

Achieve uncompromised layer adhesion and part strength.


DUAL PERFORMANCE EXTRUDERS

The Dual Performance Extruder system is built from the ground up to accelerate print times and provide dimensional accuracy across every part.

1) Smart sensors for material management and print protection

Leveraging industrial DNA, each Performance Extruder contains a suite of sensors that monitor when the material is running low and allows for active jam detection during the entire print duration.

It’s like autonomous protection for your print—and your printer.

2) Greater torque with a 19:1 dual-drive gear ratio

From great strength comes great performance. The 19:1 dual-drive gear ratio keeps material loaded and ready for reliable material extrusion at every layer.

3) Lengthened thermal core with less than 60-second heat up time

A lengthened thermal core and a fast start-up time ensure that materials are ready to go when your ideas are.


DRY-SEALED MATERIAL BAYS

Form a near-perfect seal with the Dry-Sealed Material Bays found in METHOD X to keep your material free of damaging humidity.

A suite of built-in sensors provides that your material is stored in its optimal environment – a feature only found in industrial 3D printers.


ULTRA-RIGID METAL FRAME CONSTRUCTION

A structurally-optimized metal frame runs the full length of the body to offset flexing. Less flexing means more consistent prints with better part accuracy and fewer failures.

DISSOLVABLE SUPPORT SYSTEM

Superior surface finish and unrestricted geometric freedom are paramount to delivering high quality printed parts. MakerBot Water-Soluble PVA ensures fast and effortless support removal without compromising part design or dimensional accuracy.

Key benefits include unrestricted geometric freedom (large overhangs, cavities, etc.) as well as superior print quality and surface finish.

Request a Quote Now

Labs

MAKERBOT
Materials Program

You can now unlock your METHOD with unlimited materials.

The MakerBot Materials Program allows filament suppliers to qualify their 3D printing materials for the MakerBot METHOD platform. Explore new 3D printing applications with pre-qualified materials from leading filament companies such as KIMYA, JABIL, Mitsubishi Chemicals, Polymaker, with many more to come.


EXPERIMENTAL EXTRUDER FOR METHOD

The MakerBot LABS Experimental Extruder for METHOD easily swaps into the model material slot of METHOD and METHOD X for unlimited material testing options and optimization.

Built on the same industrial architecture as the Performance Extruder for METHOD, the Experimental Extruder brings power and precision with the added benefit of interchangeable nozzle assemblies.

Order Now



FEATURED MATERIALS

A growing list of partners has worked to qualify filament for use with the MakerBot LABS and the Experimental Extruder.

– ABS CARBON FIBER from KIMYA
An ABS composite material with 30% chopped carbon fiber for improved stiffness and lower weight.

– PETG ESD from JABIL
An easy processing, Electrostatic Dissipative (ESD) product for printing parts that meet sensitive electronics and could be damaged by electrostatic discharge.

– DURABIO™ from Mitsubishi Chemical
Bio-based, BPA free resin. It combines PMMA’s transparency with a higher chemical and scratch resistance compared to polycarbonate (PC).

– PC-FR from Polymaker PolyMax™
A flame retardant polycarbonate (PC) filament (UL94V-0/1.5 mm) displaying excellent toughness, strength, and heat resistance.

FEATURED APPLICATIONS

Click For MakerBot Materials

Software

MAKERBOT PRINT
Software

MakerBot Print helps you to optimize and streamline the 3D printing process for any workflow. Discover, prepare, manage, and share 3D prints, and enjoy the best of everything that 3D printing has to offer on your Mac, PC, or in the Cloud.

PREPARE AND PREVIEW 3D PRINTS
Import design files and fine-tune settings for optimum results when printing.

IMPORT NATIVE CAD FILES
Streamline print preparation and file management with native CAD file support.

*MakerBot (.makerbot), STL (.stl), SolidWorks (.sldprt, .sldasm), InventorOBJ (.ipt, .iam), IGES (.iges, .igs), STEP AP203/214 (.step, .stp), CATIA (.CATPart, .CATProduct), Wavefront Object (.obj), Unigraphics/NX (.prt), Solid Edge (.par, .asm), ProE/Creo (.prt, .prt., .asm, .asm.), VRML (.wrl), Parasolid (.x_t, .x_b)

CLOUD-ENABLED 3D PRINTER MANAGEMENT
Control and monitor multiple 3D printers via live camera feeds and print status updates. Stay connected no matter where your printers are set up.

For easy collaboration, you can also save 3D files as projects and share them.

Request a Quote Now

Applications

METHOD X CARBON FIBER EDITION
Applications At A Glance

Request a Quote Now
