Stratasys J850 Pro

GO BEYOND BASIC

Meet Stratasys J850 Pro, from the J8 Series.

Concept verification, functional performance, and design validation: those are the daily challenges that #designers and #engineers face during their work.

As a single end-to-end solution for prototyping where form, fit, and function matter, the J850 Pro answers designer engineers’ needs at all stages of product development.

The J850 Pro is the perfect reduced cost solution for rapid prototyping and engineering applications with its wide range of multi-materials offerings and capabilities.

Description

ITERATE WITH EASE, DESIGNED FOR ENGINEERS

The J850 Pro answers design engineers’ needs at all stages of product development where form, fit, and function matter.

In the time it takes to make a single prototype using traditional
methods, you can get 5x more iterations with the J850 Pro.

The large, seven-material capacity allows you to load your
most-used resins and avoid downtime associated with material
changeovers. Plus, you can print each model quickly with the
Super High Speed draft mode.

This accelerated workflow enables you to design, test and
refine in a matter of days, not weeks.

  • Versatility: Monochromatic and multi-material prints
  • Precision: 4 Print Modes with improved speed and accuracy makes exact match parts
  • Efficient Use: New and advanced material options with fewer material changeovers

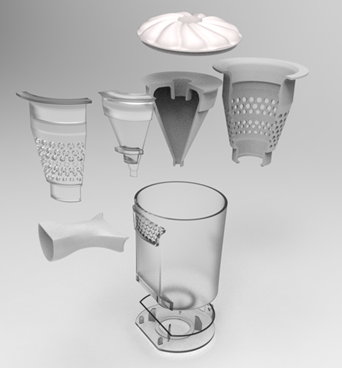

Main Vacuum Cleaner Unit 3D printed with Stratasys grayscale and clear resins separately, and assembled together.

Main Vacuum Cleaner Unit 3D printed in parts
and assembled together.

PROTOTYPE SMARTER

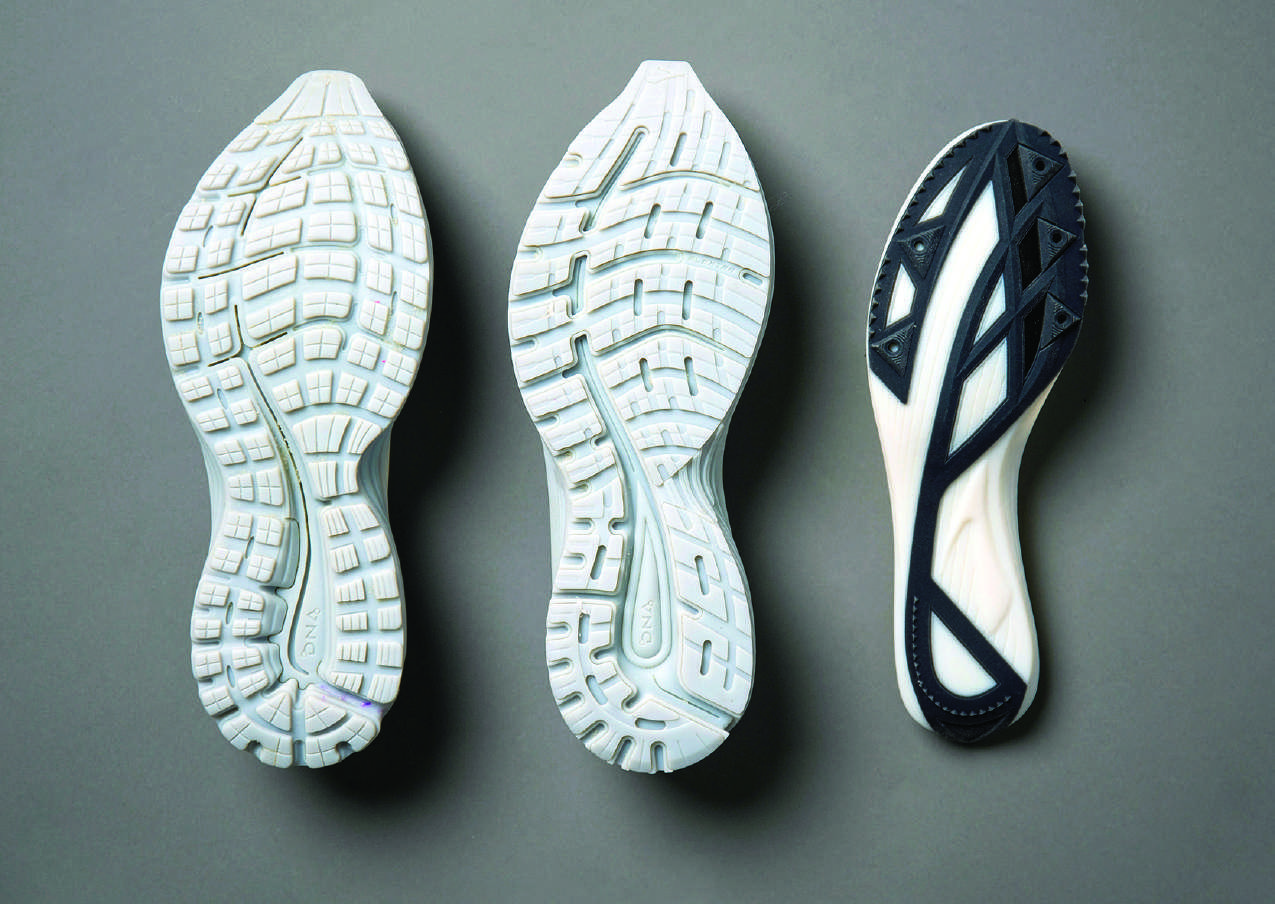

3D printed shoe midsole and outsole prototypes created by Brooks Running

It’s simple to create functional, multi-material models that let you test and validate prototypes faster, and move through stakeholder review with ease.

Quicker decisions and approvals help you to achieve product verification, increase throughput and save valuable time.

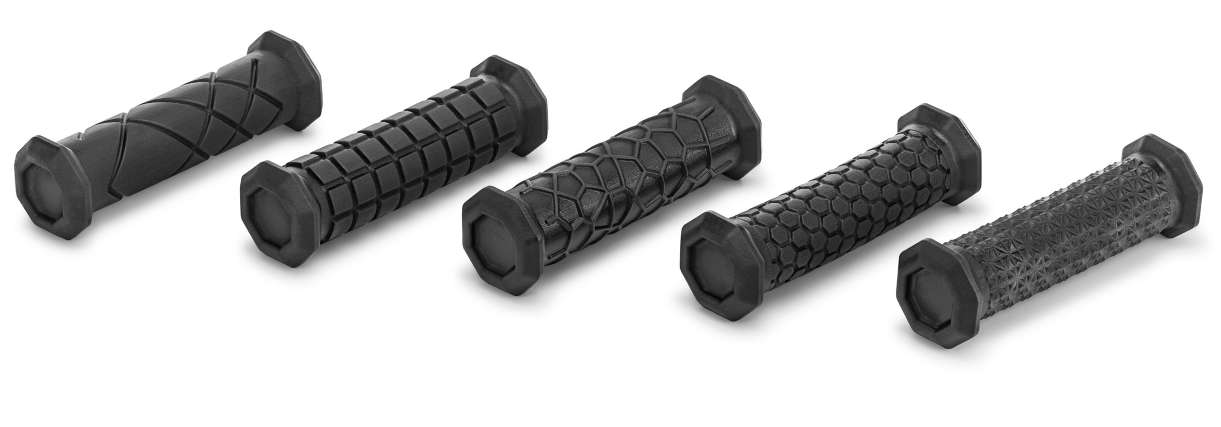

Motorcycle throttle grip prototypes 3D printed with Agilus30 material

Download the free Ebook to get a closer look at the Stratasys J8 Series 3D printers and get a better understanding of the impact they have on design realism across all industries and disciplines.

FUNCTION LIKE A PRO

From consumer products to medical devices, print up to seven materials simultaneously, allowing for virtually unlimited material combinations and multi-material parts.

Flexible materials in a range of shore values allow for precise simulation of rubber and silicone products, and heat-resistant Digital ABS Plus means you can perform functional testing at any stage of the design process.

Simulate the properties of engineering materials like polypropylene, which means even more accurate prototypes. When it comes to functional capabilities, only PolyJet Technology™ allows you to create hundreds of digital material mixes with just a few cartridges.

Require full-color capabilities in the future? A software upgrade is available to turn it into J850 Prime.

Multi-material container lid prototype 3D printed with Agilus30 material.

MAKE IT PERFORM

Achieve unprecedented combinations of functional digital materials – from opaque to transparent and rigid to flexible – in a single print by leveraging multi-material capabilities and the virtually endless possibilities of PolyJet materials.

CONCEPT IN GRAYSCALE

Produce low-cost concept models that rapidly advance the first stages of the design process with DraftGrey™.

ACHIEVE TRANSPARENCY

VeroUltra™Clear lets you 3D print translucent parts that simulate glass or clear acrylic to create accurate prototypes.

TEST FUNCTIONALITY

Digital ABS Plus material provides the heat resistance and durability you need to verify fit and functionality.

CREATE FLEXIBLE PARTS

Use the Agilus30™ material family to create flexible parts and prototypes that can flex, bend, elongate and seal.

LOWER THE COST TO CREATE

Specifications

So what’s the difference between J850 Pro, J850 Prime, and J826 Prime?

Each of these 3D printers comes with the same technology and with multi-material capabilities.

However, the main difference between J850 Pro and J850 Prime is that the former can only print in monochrome colors while the latter can print in 🌈 PANTONE-validated full-color materials.

The J826 Prime is the little brother of the J850 Prime with a smaller build tray but comes at an affordable price point.

There is an option to upgrade J850 Pro to J850 Prime for full-color 3D printing capabilities.


Stratasys J850 Pro
MAXIMUM BUILD SIZE
490 x 390 x 200 mm (19.3 x 15.35 x 7.9 in.)
MODEL MATERIALS
• Vero family of opaque materials in
neutral shades (black, white, and gray)
• Agilus30 flexible material
• Transparent VeroClear and
VeroUltraClear
DIGITAL MATERIAL OPTIONS
Composite materials including:
• Digital ABS Plus and Digital ABS2 Plus in ivory
• Rubber-like materials in a variety of Shore A values
• Translucent color tints
LAYER THICKNESS
Horizontal build layers down to 14 microns (0.00055 in.)
55 microns (0.002 in.) in Super High Speed mode
MACHINE DIMENSIONS
System: 82 x 131 x 66.5 cm (32.28 x 51.57 x 26.18 in)
Material Cabinet: 111.9 x 65.6 x 63.7 cm (44 x 25.8 x 25.1 in)
MACHINE WEIGHT
System: 430 kg (948 lbs)
Machine Cabinet: 153 kg (337 lbs)
BUILD MODES
High Quality: up to 7 base resins, 14 micron (0.00055 in.) resolution
High Mix: up to 7 base resins, 27 micron (0.001 in.) resolution
High Speed: up to 3 base resins, 27 micron (0.001in.) resolution
Super High Speed: 1 base resin, 55 micron (0.002 in.) resolution
ACCURACY
Typical deviation from STL dimensions, for models printed with rigid materials, based on size: under 100 mm – ±100μ; above 100 mm – ±200μ or ± 0.06% of part length, whichever is greater.
BUILD RESOLUTION
X-axis: 600 dpi; Y-axis: 600 dpi; Z-axis: 1800 dpi
WORKSTATION COMPATIBILITY
Windows 10
NETWORK CONNECTIVITY
LAN – TCP/IP
POWER REQUIREMENTS
100–120 VAC, 50–60 Hz, 13.5A , 1 phase
220–240 VAC, 50–60 Hz, 7A , 1 phase
SUPPORT MATERIALS
SUP705 (water jet removable)
SUP706B (soluble)
REGULATORY COMPLIANCE
CE, FCC
SOFTWARE
GrabCAD Print
SPECIAL FACILITY REQUIREMENTS
 18 - 25°C;
Relative humidity 30-70 % (non-condensing)

Software

GrabCAD Print Software

GrabCAD Print software makes 3D printing easy, accessible and connected. Read and understand CAD files natively to help you simplify the preparation, scheduling, monitoring, and reporting of all your print jobs. GrabCAD Print offers an efficient workflow that streamlines job management in shared office and model shop environments using Stratasys 3D Printers.



Print directly from CAD
Save time by directly printing CAD files, without converting and fixing STL files. You can also print directly from within Creo 4.0 or the SOLIDWORKS® Add-in.

Pantone Validated
With nearly 2,000 available options, match PANTONE colors in a single click, with no time-consuming painting or trial-and-error matching.

Get Started Fast
Smart default settings, tooltips, and notification help you to print seamlessly, without the need to fiddle with the settings.

See what you’re doing
Make necessary adjustments when required, with a detailed view of your model, tray, and slice preview.


Request A Quote Now

Resources

Learn how Stratasys SUP706B soluble support material dissolves easily, giving you the freedom to print complex and delicate features, without the hassle of laborious post-processing.
