Stratasys Fortus Series 3D Printers

Fortifying your Industrial Prowess

The Stratasys Fortus Series 3D Printers are production workhorses that guarantee 3D printed components using engineering-grade thermoplastics.

They are ideal for engineers who require demanding flexibility to print larger-sized or many parts with reliability, repeatability, and durability that are unmatched in the industry.

From functional prototypes with exacting tolerances to manufacturing tools that perform under pressure, achieve industrial-grade performance with the Fortus Series.

Description

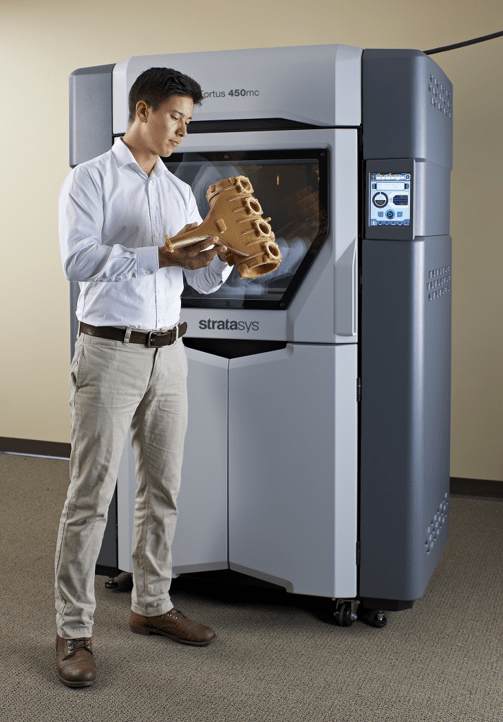

F380mc, F450mc Stronger, Faster, Better

Stratasys FDM technology gives you unmatched versatility and proven performance. Build parts in the materials you’re familiar with, but with the advanced complexity and high requirements needed for today’s manufacturers. With easy-to-use interfaces and software controls, the Fortus printing systems make it easy to produce complex parts more efficiently and effectively.

Build Bigger Parts

FDM systems are as versatile and durable as the
parts they produce. Fortus 380mc (355 x 305 x 305 mm) and the Fortus 450mc (406 x 355 x 406 mm) lets you print complex large-sized or many parts with ease.

As true production workhorses, the 380mc or 450mc consistently delivers high throughput, duty cycles, and utilization rates that make digital manufacturing highly practical.

Unrivaled Repeatability

When using 3D printing for validation prototypes and the
production of finished goods, using a durable, proven
thermoplastic is all the more important, and it may be the
only choice for many applications.

Production-Grade Materials

Print with ABS-ESD7, ABS-M30, ABS-M30iAntero 800NA (450mc only), ASAFDM Nylon12Nylon 12CF (380 Carbon Fiber Edition & 450mc), PCPC-ABS, PC-ISO, ULTEM 9085 (450mc only), ULTEM 1010 (450mc only), and ST-130 production-grade thermoplastics.

F900 The Most Powerful FDM Manufacturing 3D Printer

The new F900 Production 3D Printer is factory-floor ready with MTConnect interface and composite material compatibility.

The Stratasys F900 3D System has ALL that the Fortus printers family has to offer, but on a bigger scale.

The ultimate manufacturing-grade production 3D printer – print with the greatest variety of engineering-grade materials to produce demanding functional prototypes, production parts, jigs, fixtures, and factory tooling with unmatched accuracy, repeatability, and predictability. Enjoy remarkable production agility and a high return on investment, only with the F900.

Currently, the only FDM printer on the market that is able to make parts for commercial airlines.

Specifications


380mc
450 mc
900mc
BUILD ENVELOPE
355 x 305 x 305 mm (14 x 12 x 12 in.)
406 x 355 x 406 mm (16 x 14 x 16 in.)
914 x 610 x 914 mm (36 x 24 x 36 in.)
MATERIAL DELIVERY OPTIONS
One bay each for material and support canisters
Two bays each for material and support canisters
Two bays each for material and support canisters
LAYER THICKNESS
0.330 mm (0.013 in.)
0.254 mm (0.010 in.)
0.178 mm (0.007 in.)
0.127 mm (0.005 in.)
0.330 mm (0.013 in.)
0.254 mm (0.010 in.)
0.178 mm (0.007 in.)
0.127 mm (0.005 in.)
0.330 mm (0.013 in.)
0.254 mm (0.010 in.)
0.178 mm (0.007 in.)
SUPPORT STRUCTURES
Soluble for most materials; break-away for PC-ISO, ULTEM and PPSF; soluble or break-away for PC
Soluble for most materials; break-away for PC-ISO, ULTEM and PPSF; soluble or break-away for PC
Soluble for most materials; break-away for PC-ISO, ULTEM and PPSF; soluble or break-away for PC
SYSTEM SIZE & WEIGHT
127 x 90.17 x 194.31 cm (50 x 25.5 x 76.5 in.)/with crate: 680 kg (1,500 lbs.), without crate: 601 kg (1,325 lbs.)
127 x 90.17 x 194.31 cm (50 x 25.5 x 76.5 in.)/with crate: 680 kg (1,500 lbs.), without crate: 601 kg (1,325 lbs.)
2772 x 1683 x 2027 mm (109.1 x 66.3 x 79.8 in.)/with crate: 3287 kg (7247 lbs.), without crate: 2869 kg (6325 lbs.)
ACHIEVABLE ACCURACY
Parts are produced within an accuracy of ± .127 mm (± .005 in.) or ± .0015 mm/mm (± .0015 in/in), whichever is greater.
(Accuracy is geometry dependent. Achievable accuracy specification derived from statistical data at 95% dimensional yield.)
Parts are produced within an accuracy of ± .127 mm (± .005 in.) or ± .0015 mm/mm (± .0015 in/in), whichever is greater.
(Accuracy is geometry dependent. Achievable accuracy specification derived from statistical data at 95% dimensional yield.)
Parts are produced within an accuracy of ± .127 mm (± .005 in.) or ± .0015 mm/mm (± .0015 in/in), whichever is greater.
(Accuracy is geometry dependent. Achievable accuracy specification derived from statistical data at 95% dimensional yield.)
NETWORK COMMUNICATION
10/100 base T connection; Ethernet protocol
10/100 base T connection; Ethernet protocol
10/100 base T connection; Ethernet protocol
POWER REQUIREMENTS
280C, 50/60 Hz, 3 phase, 16A/phase (20 amp dedicated circuit required)
280C, 50/60 Hz, 3 phase, 16A/phase (20 amp dedicated circuit required)
230VAC nominal three-phase service with 5% regulation
230VAC as measured phase-to-phase; 50 Hz or 60Hz; 40 Amp circuit
REGULATORY COMPLIANCE
CE
CE
CE
SPECIAL FACILITY REQUIREMENTS
None
None
None

Software

GrabCAD Software

GrabCAD software works on all Fusion123 Series 3D Printers and it is able to read most format of CAD files before generating tool paths including support structures.

KEY FEATURES

Ability to scale 3D models
to desired size.


Optimum Control over orientation,
print parameters and material
assignments of your 3D printed model.

Automatic or custom packs
for multiple models and
assembled files in one build.

3D slicing preview
(For FDM 3D Printers).

Multi-language Support.

GrabCAD Voxel Print delivers unprecedented
user control over color and material placement.

insight software 3d printing

Insight Software

Only available for the Stratasys F370 3D printer, Insight software organizes your 3D CAD program’s STL output by automated slicing, generating support structures and creating material extrusion paths.

Users can manually edit parameters to establish the look, strength and precision of parts as well as the speed and material use of the FDM process.



KEY FEATURES

Optimum build orientation for
maximum strength and
smooth surface finish.


Manipulate tool paths for
advanced control over part properties.

Customisable supports for
quick, easy removal and best
use of materials.

Control Center for communication
with user workstations
and Fortus 3D Printers.

Support Removal

SCA-3600

For water-soluble support, the SCA-3600 dissolves support from large 3D models created on the Fortus 900mc 3D Printer.

KEY FEATURES


Optimum nozzle & pump
designs for faster removal
of supports on all types
of 3D printed models.



Large build capacity to clean
large part, or multiple smaller
parts in its roomy tank
at a faster rate.



User-selectable temperature
presets for certain
material to be cleaned at
optimum temperatures.

Break-away support is easily removable by hand.
